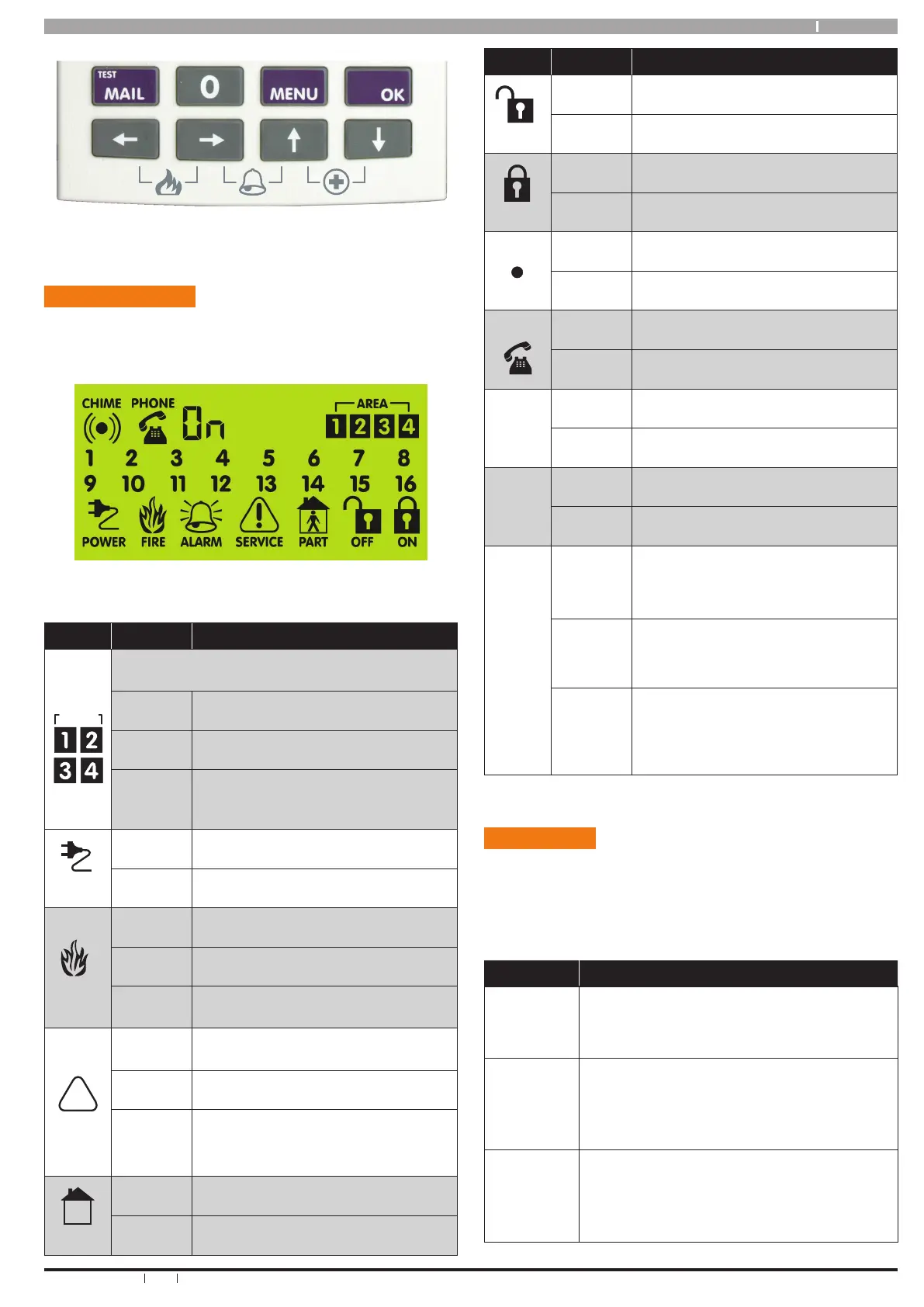

Figure 1: Keypad Emergency Alarm Trigger’s
Status Icons / LED’s
The following table lists the function of each of the ICON
Symbols and LED Indicators on the ICON Keypad Display.
Figure 2: LCD Display Showing All ICONs
Icon Status Meaning
AREA
The keypad can display which areas (1 – 4) are
turned on or o via the Area Icon Indicators.
On The area is All On or Part On.
O The area is O.
Flashing
Fast
The area has an alarm.
POWER
On System power is normal.
Flashing System power is missing.
FIRE
Flashing A re alarm is active.
O No re alarm.
On
Fire alarm in memory (Turn the
area All On and O to clear).
!
SERVICE
On
The existing service or trouble
condition has been acknowledged.
O
No service or trouble conditions
exist.
Flashing
A service or trouble condition is
present that has not been acknowl-
edged.
M
PART
On Area is Part On or Part 2 On.
O The area is not Part On.
Icon Status Meaning
OFF
On The area is O.
O The area is All On or Part On.
ON
On The area is All On.
O The area is O.
(
(
)
)
CHIME
On Chime mode is ON.
O Chime mode is O.
PHONE
On Phone Line in use.
O Phone Line not in use.
Red
LED
On The Area or System is Armed.
Flashing Alarm.
Green
LED
On Areas or System Disarmed.
Flashing Area not ready to turn on.
9 10
11 12
13 14
15 16
1 2
3 4
5 6
7
8
On Zone Open. (Unsealed or Faulted).
O Zone Closed. (Sealed or Normal).
Flashing Zone in Alarm or Alarm Memory.
Table 4: Status ICONs, LED Indicator’s and Their Meanings
Keypad Tones
Your keypad emits several distinct tones to alert you about
various system events. Additional bells or sirens may also be
connected to your system. Bells or sirens mounted on the
exterior of your premises alert neighbours to emergencies
and provide an audible guide for police and re ghters.
Type Meaning
Fire
Alarm
Tone
When a re zone sounds an alarm, the
keypad will sound 3 seconds on and 2
seconds o (repeat).
Burglary
Alarm
Tone
When a burglary zone activates while your
system is turned on, your keypad emits a
continuous siren tone. It sounds for the
time set by your security company.
Trouble
Tone
When a system component is not
functioning properly, your keypad sounds
4 fast short beeps followed by a 5 second
pause (repeat).
