3 Description
900-351_IFU_V2.0.0_20221-S0-20150520-EN Operating Manual ARC 350 19

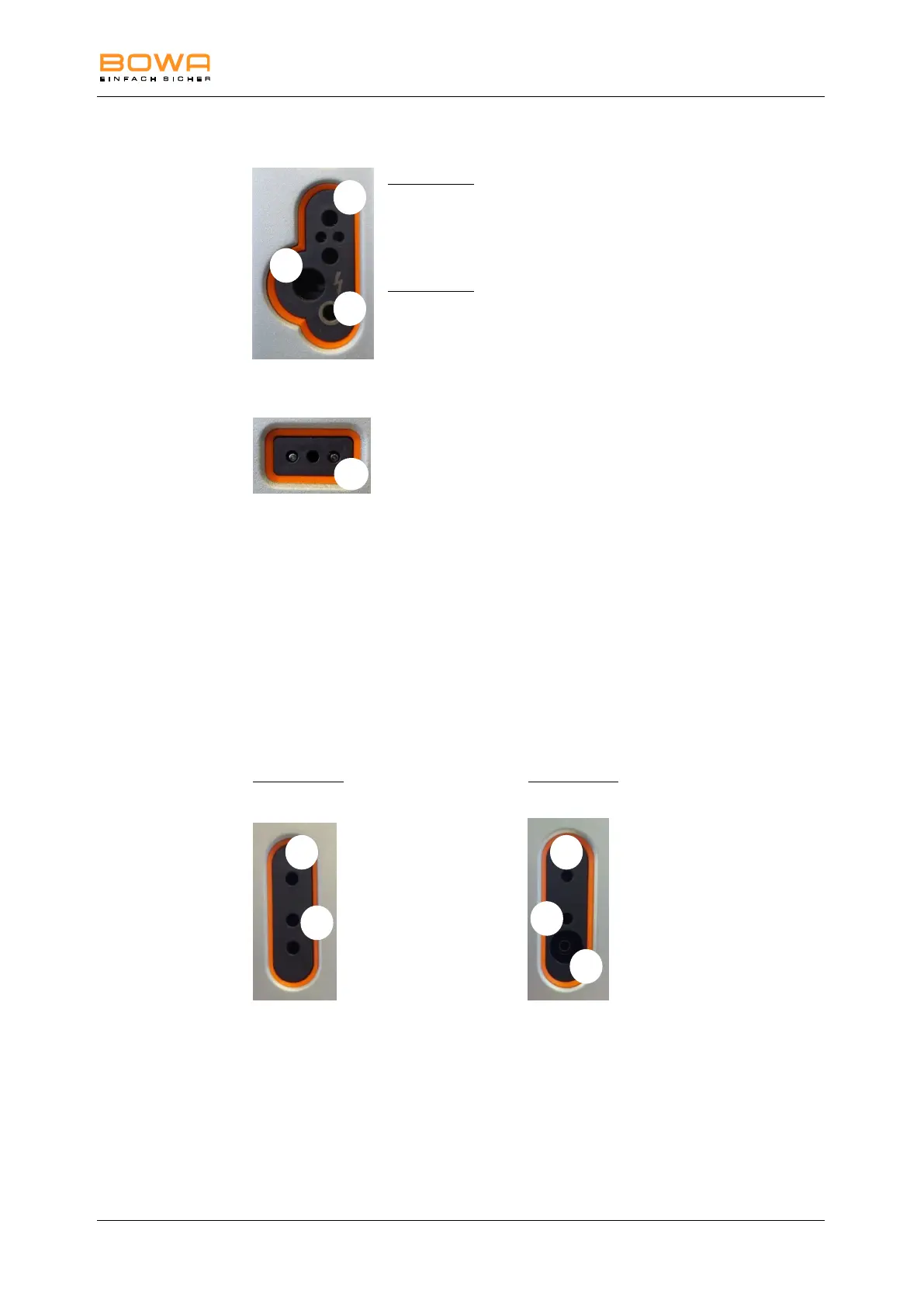

Monopolar connection sockets
Alternative 1
a BOWA COMFORT
3-Pin US type
b Bovie (footswitch)
c 4 mm Socket (footswitch)
Alternative 2
a BOWA COMFORT
3-Pin US type
b Erbe 5 mm
c 4 mm socket (footswitch)
Connection socket for neutral electrode
14 Neutral (US type)
3.1.3. Bipolar connector module (right)
15 Bipolar 3
Socket connector for bipolar instruments with foot switch, finger switch or
AUTOSTART*
16 Bipolar 4
Socket connector for bipolar instruments with foot switch, finger switch or
AUTOSTART*
Bipolar connection sockets
Alternative 1: Alternative 2:
a BOWA COMFORT a BOWA COMFORT
b 2-pin US type (28.58 mm) b 2-pin US type (28.58 mm)
c Erbe VIO/ICC
* Applied part type F according to IEC 60601-1
c
b
a
14
b
b
a
a
c
