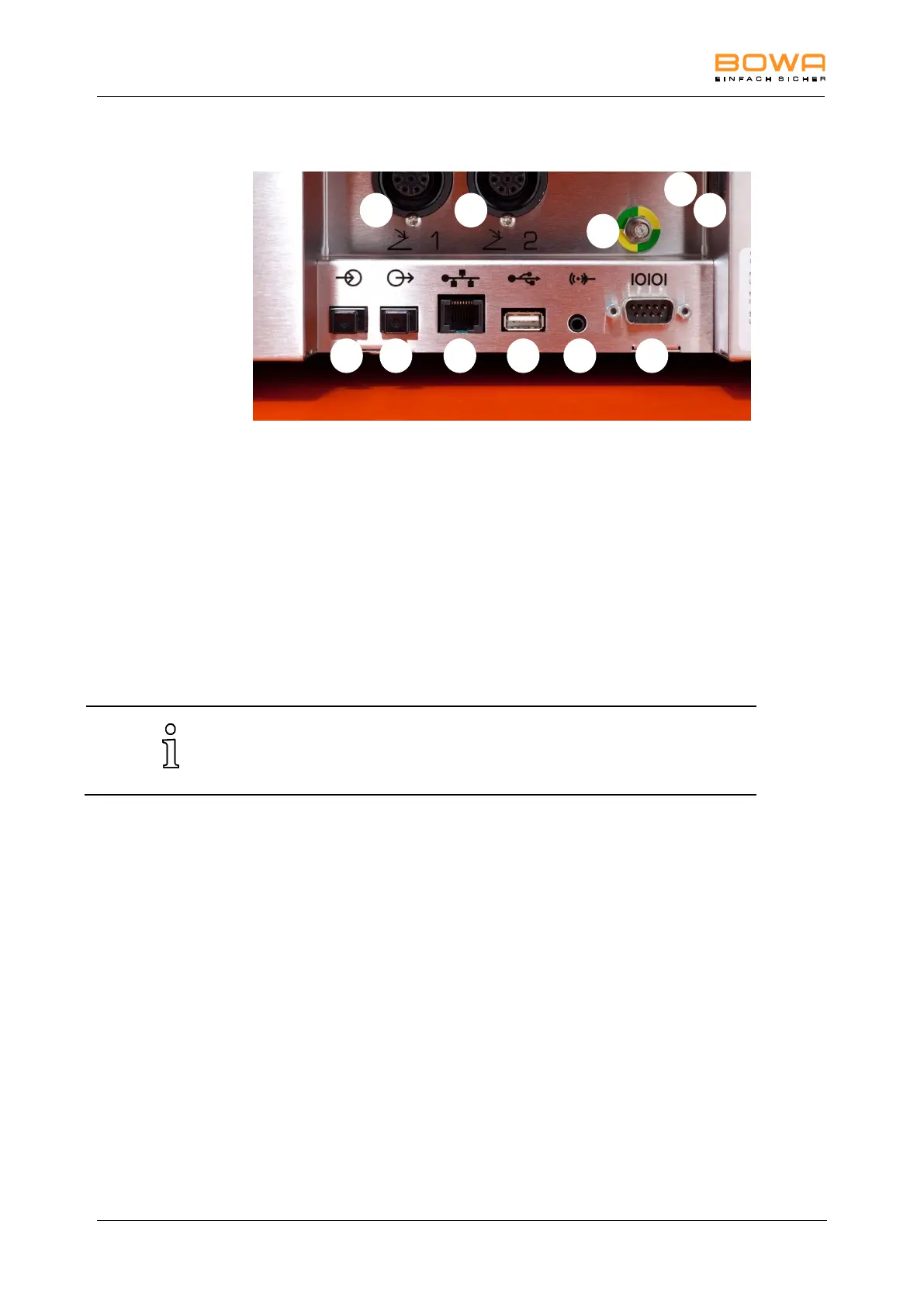

3.1.4. Rear panel user interface components
17 Foot switch socket connector 1
18 Foot switch socket connector 2
19 Equipotential bonding terminal
20 IEC power cord connector
21 Fiber-optic signal input connector
22 Fiber-optic signal output socket connector
Use the following connections only for service and training purposes:
23 Ethernet connector
24 USB connector
25 Audio In (not occupied)
26 UART communication interface
27 Power switch
The USB connector can be used to perform software updates.
The maximum voltage at the SIP/SOP ports is 15 V
DC
.
