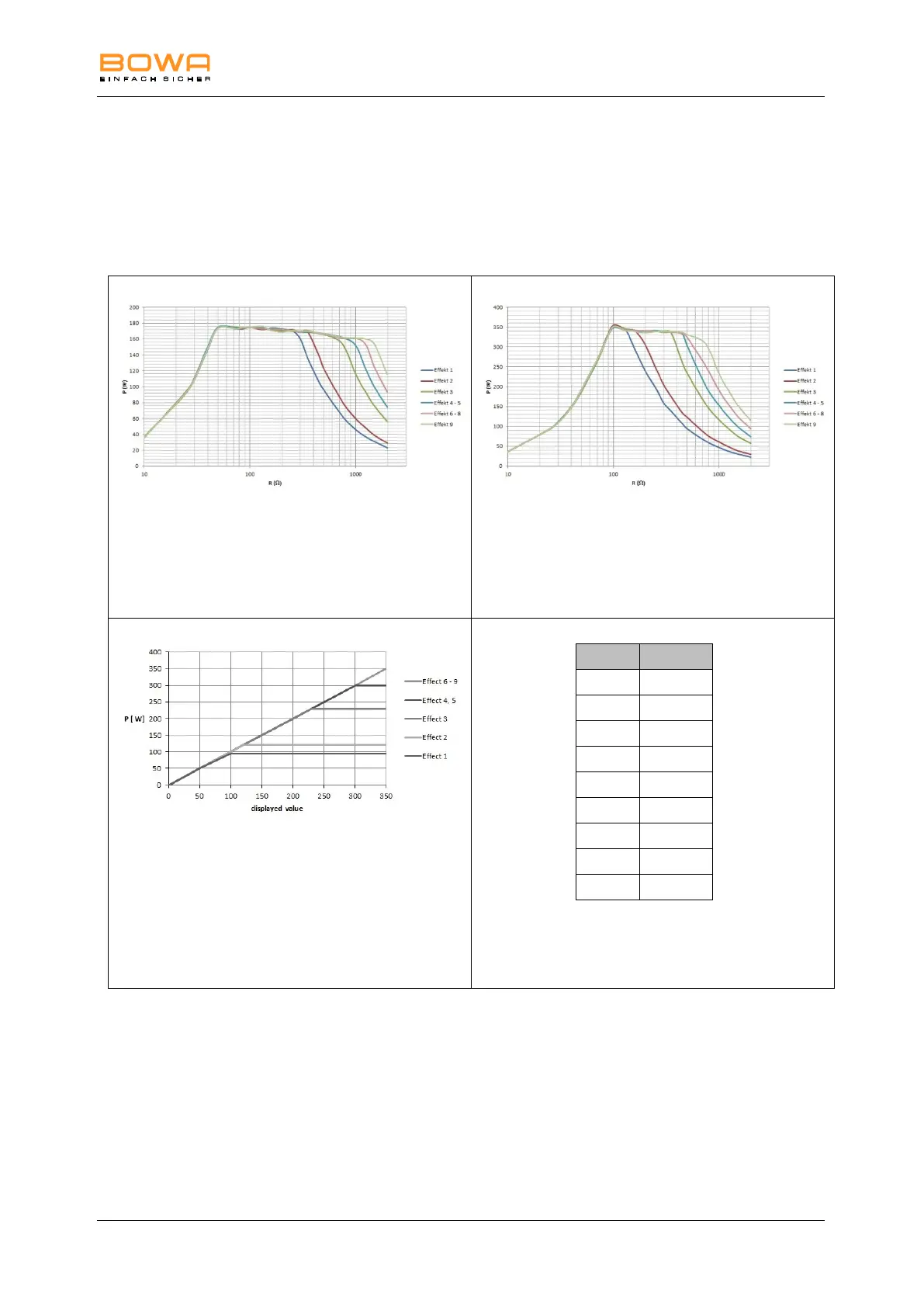

10.2. Output, voltage and current diagrams
Monopolar Cutting – Standard
Measurement at ohmic resistances
 Diagram of power output P [W] as a
function of the load resistance R [] for
the setting "Monopolar Cutting
Standard"
= 175 W
Measurement at ohmic resistances
 Diagram of power output P [W] as a
function of the load resistance R [] for
the setting "Monopolar Cutting
Standard"
= 350 W
 Diagram of power output P [W] as a
function of the setting "Monopolar
Cutting Standard"
Rated load resistance = 500 
Effect
U (Vp)
1
400
2
450
3
560
4
650
5
650
6
700
7
700
8
700
9
750
 Table of HF output voltage U [Vp] as a
function of the setting "Monopolar
Cutting Standard" (idle mode)
