1. Before You Begin
Tag Editor information on the LCD screen .
6
Ф4.0 CP 1 SL
HSF
1 / 13
1
2
30mm
This is what users will
see on screen
2:30 pm 10/07/2010
6
EN
Ф4.0 CP 1 SL
HSF
AA:12
1 / 13
ABC
Tex t
150%
A
100%
70%
CAPS
B
X
2
U
I
1
2
3
30mm
6
Ф4.0 CP 1 SL
HSF
1 / 13
1
2
30mm
This is what users will
see on screen
Ф4.0
HSF

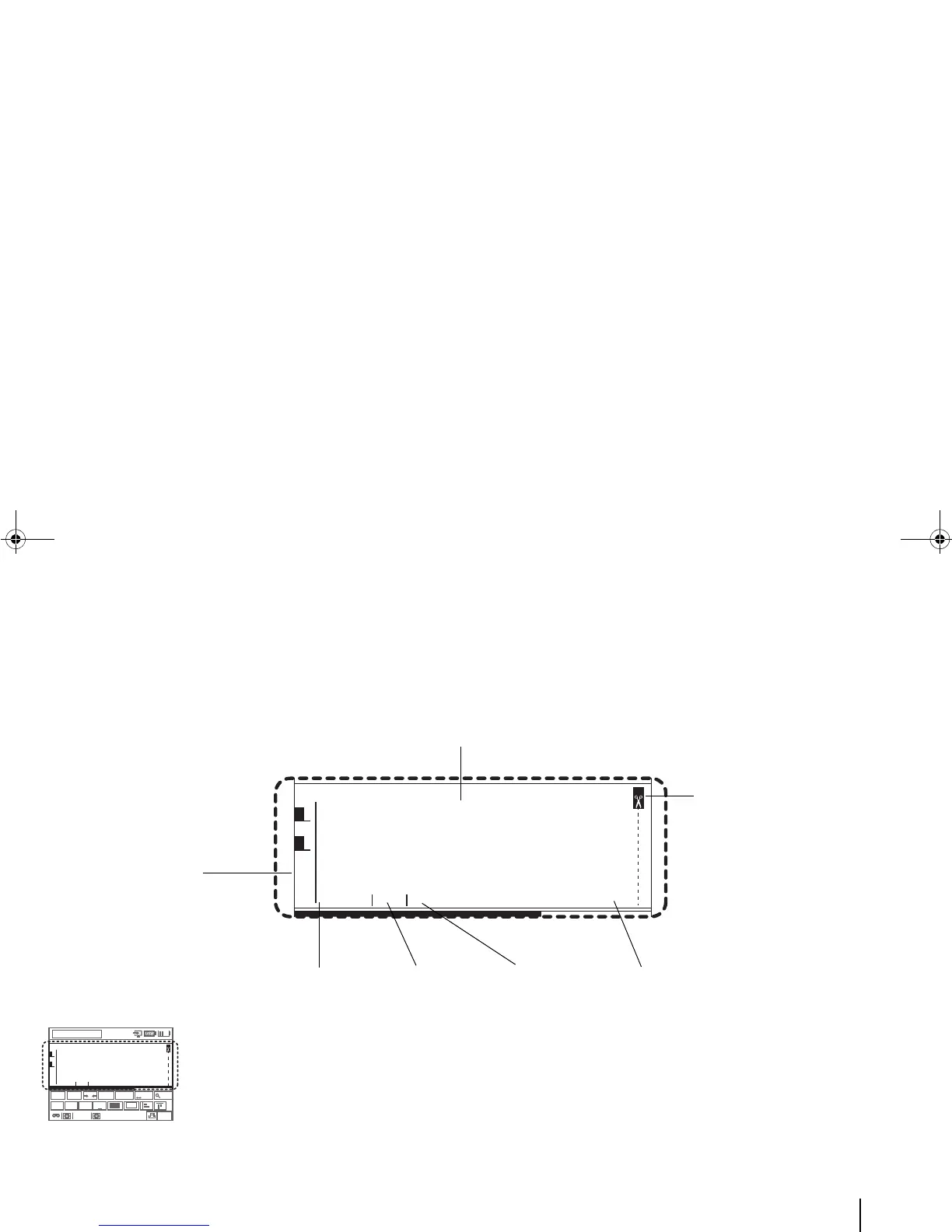

Actual tag text: This is the only text that will be printed
on the medium (tube or label). All the other details on
the LCD screen are for information only.
Multi-line tag
icons: E.g. this
tag has 2 lines.
Job Media: The
medium used in
the current
editing job is a
Heat-Shrink Flat
4.0mm tube.
Continuous
Print (CP): In
this tag, CP is
set to 1
(default).
Current Segment
Length (SL): In this
tag, SL is 30 mm.
Tag number /
Number of Tags: This
is tag 1 out of 13
tags.
Half/Full-cut icon:
E.g. this tag is set to
“Half-cut” (6).
