Braun Infusomat Space Service Manual

Procedural Instructions on the TSC
6
6 - 2 Infusomat® Space 6.0 EN
Power Supply SP
1. Power supply SP incl. Check that the connecting line is clean.
2. Power supply SP incl. Check the connecting line for damage
and
the labels for readability.
Electrical Safety
According to IEC 60601-1 or IEC 62353
Infusomat® Space
The patient and housing leakage current of the Infuso
mat® Space
is caused exclusively by the operating voltage supply (Power Sup-
ply SP or SpaceStation).
Observance of both limits is checked with the technical
safety
checks of the power supply SP (drawing No. M001 32 10 05 F04)
a
nd the SpaceStation (drawing No. M690 00 00 46 F04).
Power Supply - Equivalent Leakage Current
Note
The values to be measured are indicated in the TSC (see „Technical
Safety Check (TSC)“ ➨ pg. 5 - 4).
The equivalent leakage current is to be measured between prima-
ry and secondary circuit using the service adapter S
P.
Designation Order No.
Service adapter SP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0770 5174
Check
1. Select leakage current on the testing equipment.
2. Bridge pin 6, 7 12 and 13 with service adapter SP at the con-
nector to the unit.
3. Measure value.
4. Measure value with reverse polarity
of the mains connection.
5. Document the largest value.

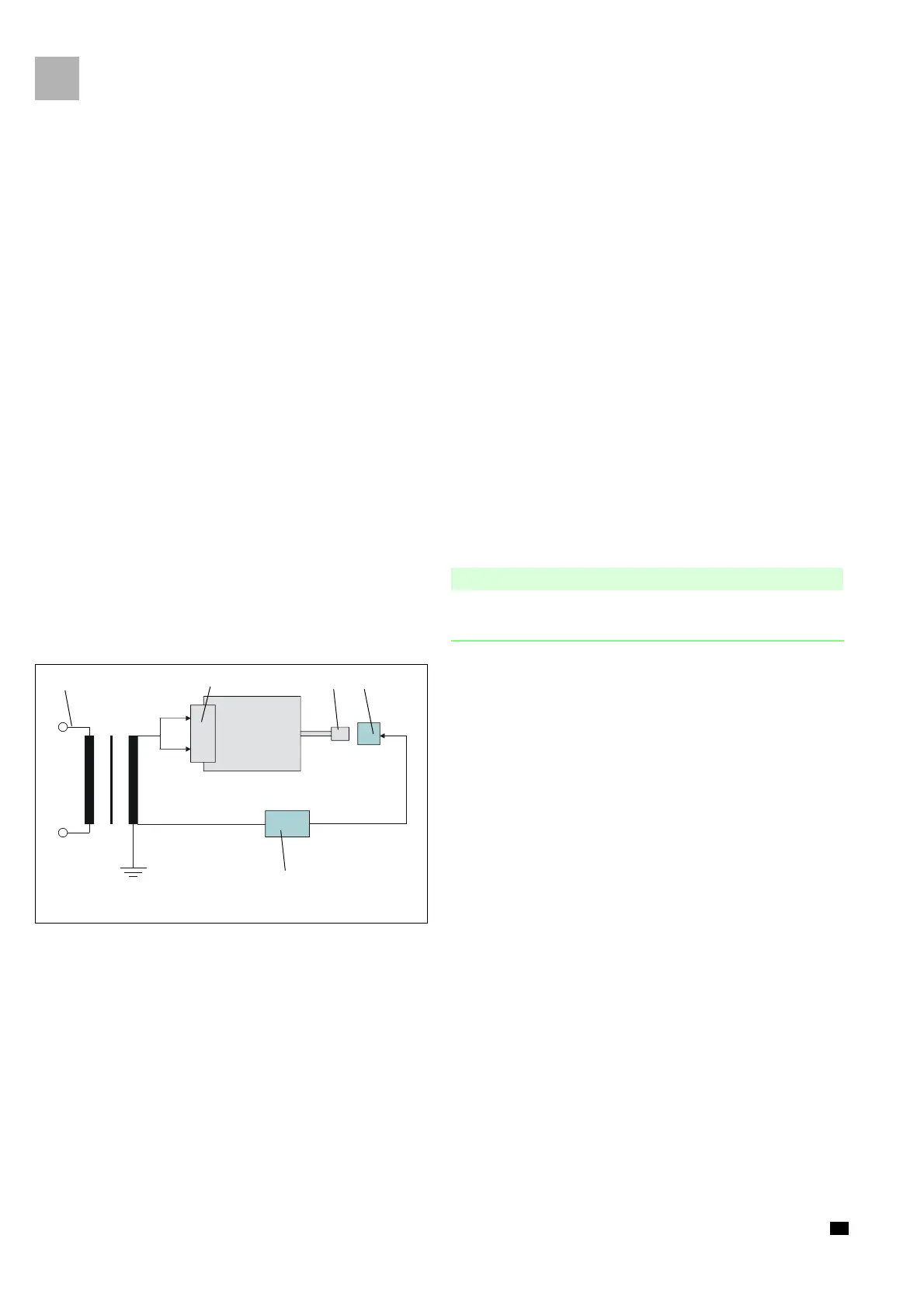

Fig.: 6 - 1
Legend of fig. 6 - 1:
Item Designation
1 Mains connection
2 Primary of the power supply
3 Secondary of the power supply
4 Service adapter SP with probe
5 Leakage current measuring device
1 2
43
5
