2 - ELECTRIC POWER SUPPLY
2-1
Many sections in this
manual pertain to check-
ing and repairing electrical components.
High voltage will be encountered in sev-
eral instances. Only persons trained and
equipped for checking high voltage shall
undertake such repairs.
If no component operates, check main
power supply. Be sure main circuit breaker
is ON and main fuses are good.
Correct voltage will be either 208 or 240V.
Perform the following if unit will not turn on:
1. Disconnect main power supply.
2. Be sure all connections are tight. If
power supply is proper, see TROU-
BLESHOOTING section.
Wiring diagrams are located on inside front
panel.
broaster.com Manual #14680 3/99 Rev 5/14

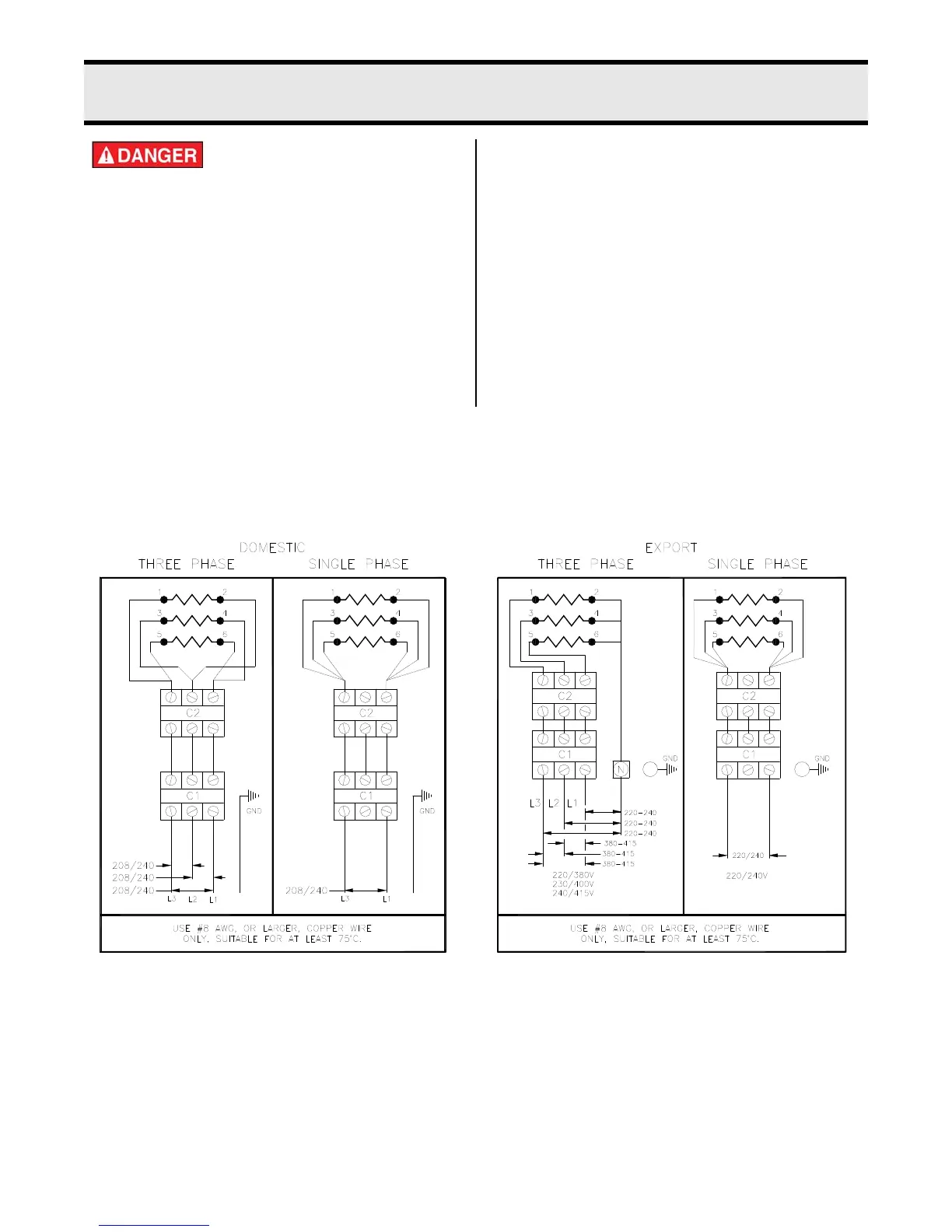

WIRING DIAGRAMS
Three and Single Phase Wiring Connections:
To Next Page
