4-12
Be sure red and yellow
wires are not reversed
during replacement. Controller will dis-
play PROB if polarity is reversed.
7. Disconnect transformer wires within
wire nuts.
8. Remove controller.
9. Assemble in reverse order.
10. See CALIBRATION.

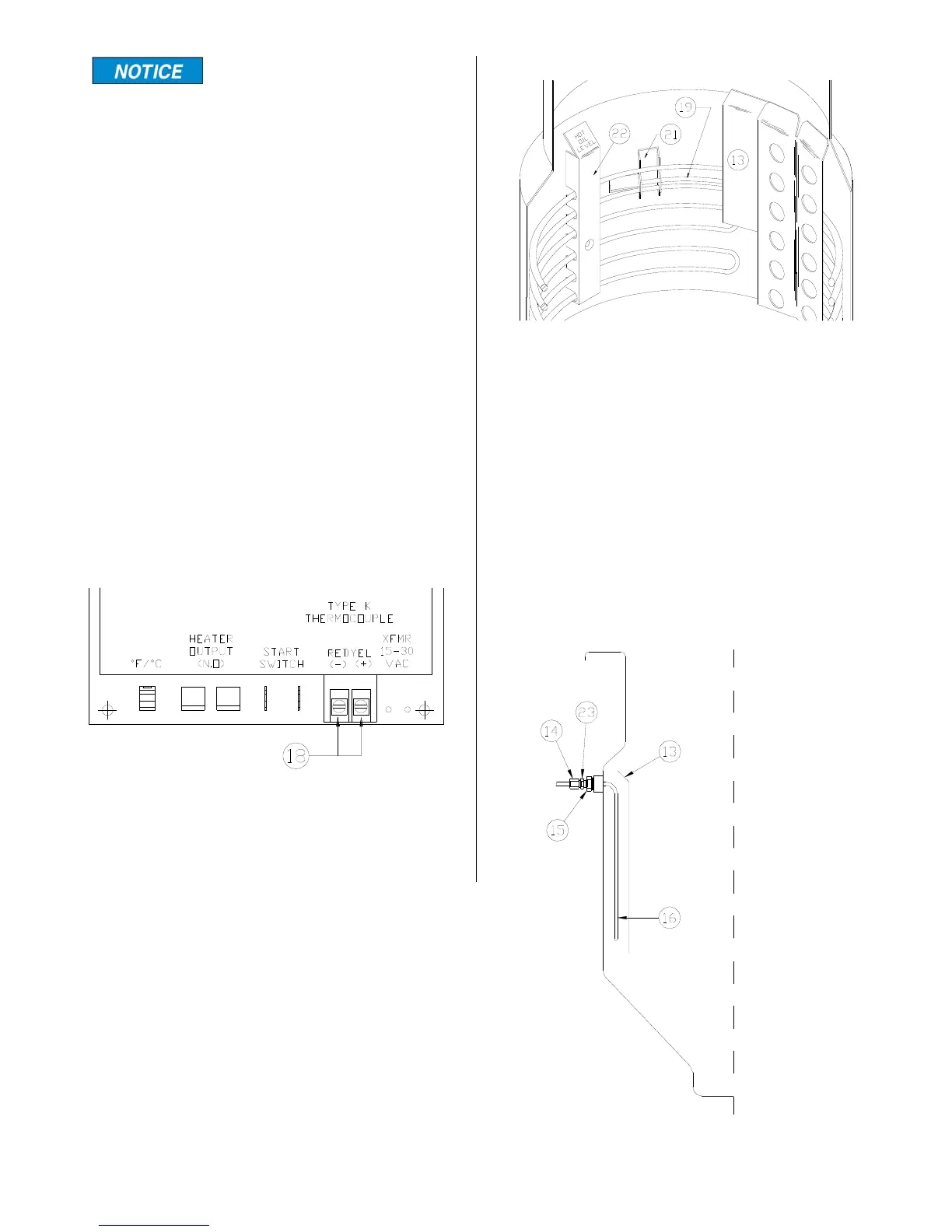

TEMPERATURE SENSOR PROBE
This probe is a thermocouple. It sends fluc-
tuating millivolts to the controller which is
translated into degrees of temperature.
Replacement 1600/1800E:
1. See ACCESS FOR SERVICE.
2. Disconnect probe (18) wires.
3. OPEN cover. Drain cooking oil from
cooking well. Close drain valve.
4. Remove capillary guard (13) inside of
cooking well.
5. Remove basket guides (22) inside of
cooking well.
6. With a dull tool such as a crescent
wrench handle, pry top heating ele-
ment inward far enough to slide
bracket (21) away from temperature
sensor probe (19). Note where probe
bracket is located. Placement is
important.
broaster.com Manual #14680 3/99 Rev 5/14
