5-9

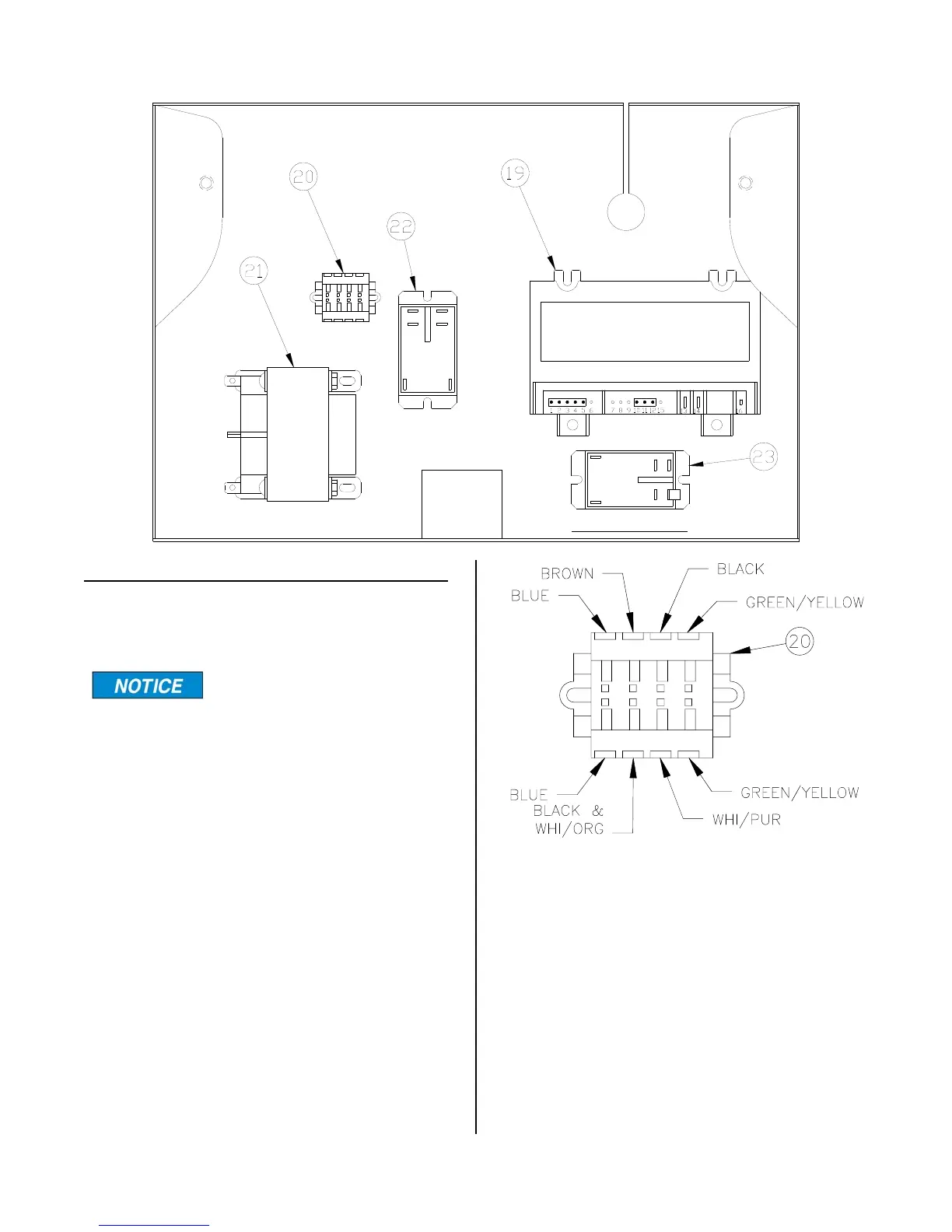

POWER INPUT BOX(1800GHUK)
Ignition control (19) operates the gas valve
solenoids and lights pilot burner.
Be sure polarity in main
power supply is not
reversed. If it is, pilot burner will ignite
but the flame sensor will not produce
enough microvolts to verify a pilot flame.
As a result, the gas valve will not open.
1. See ACCESS FOR SERVICE.
2. Connect main power supply.
3. Colors indicated below come from wire
harness attached to the gas valve.
4. Turn cook/filter switch to COOK. With
HEAT ON light illuminated, check voltage
across blue and black at the terminal
block (20) with a voltmeter. Meter should
indicate applied voltage. If not, check
voltage supply, loose connections, or igni-
tion control is faulty.
5.With heat on light illuminated, check
voltage across blue and brown at the ter-
minal block (20) with a voltmeter. Meter
should indicate applied voltage. If not,
check voltage supply, loose connections,
or ignition control is faulty.
1800GHUK Pressure Fryer for the United Kingdom:
broaster.com Manual #14680 3/99 Rev 5/14
