Broaster 1800 - 1600 Mechanical Control Panel

3 - 1600 MECHANICAL CONTROL PANEL
3-1

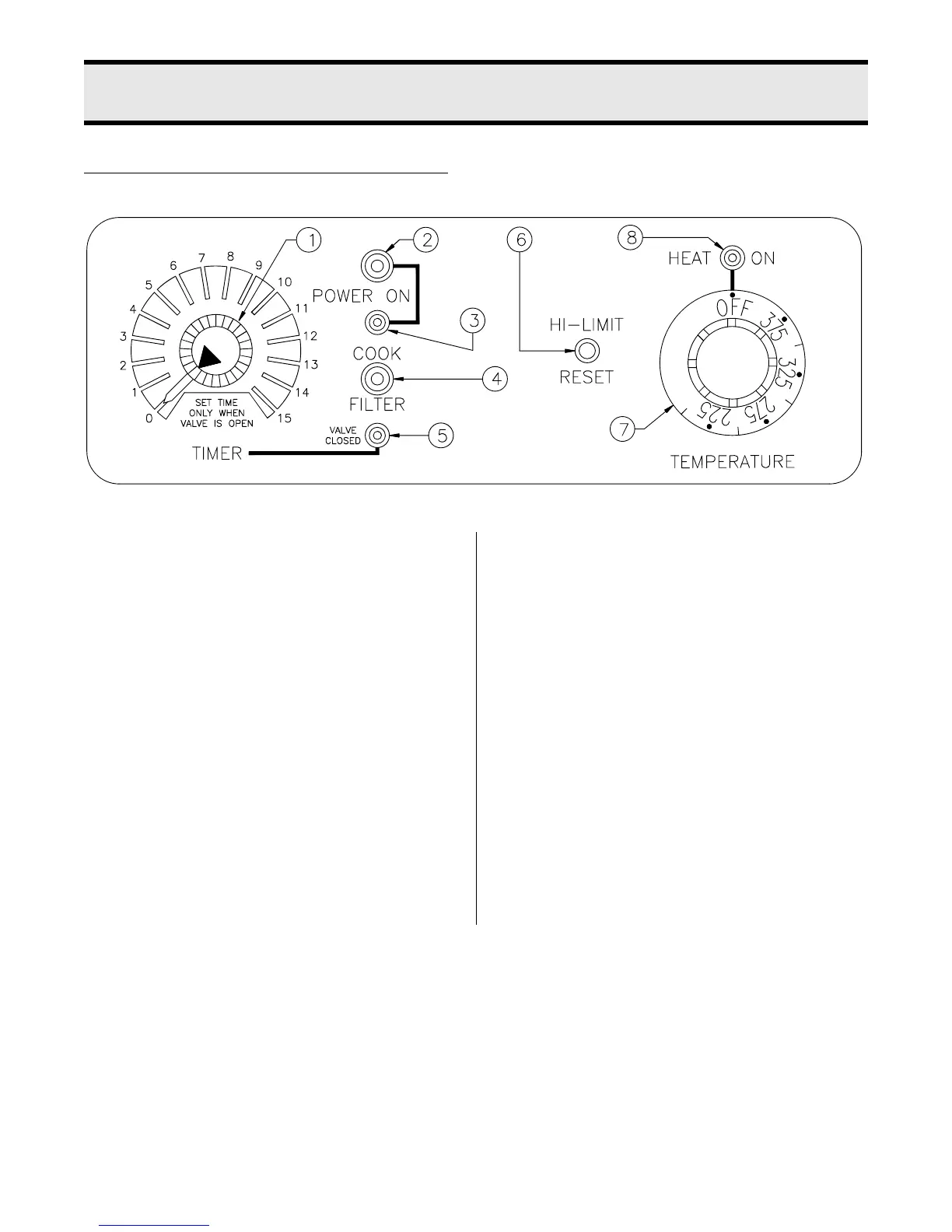

1. Timer: Shows desired cooking time
and time countdown during a cook
cycle.
2. Power Switch: Upper position allows
use of the function shown by the cook/
filter position. Lower position is OFF.
3. Power On Indicator Light: Illumi-
nates when power switch is in the
upper position.
4. Cook/Filter Switch: Has two posi-
tions: COOK and FILTER.
5. Valve Closed Indicator Light: Illumi-
nates when pressure regulating valve
is CLOSED.
6. Hi-Limit Control: Prevents oil tem-
perature from exceeding 475
° F.
7. Temperature Control: Regulates oil
temperature.
8. Heat On Indicator Light: Illuminates
when oil is being heated.
FAMILIARIZATION
