3-7
5. Remove capillary guard (13) from
inside the cooking well.

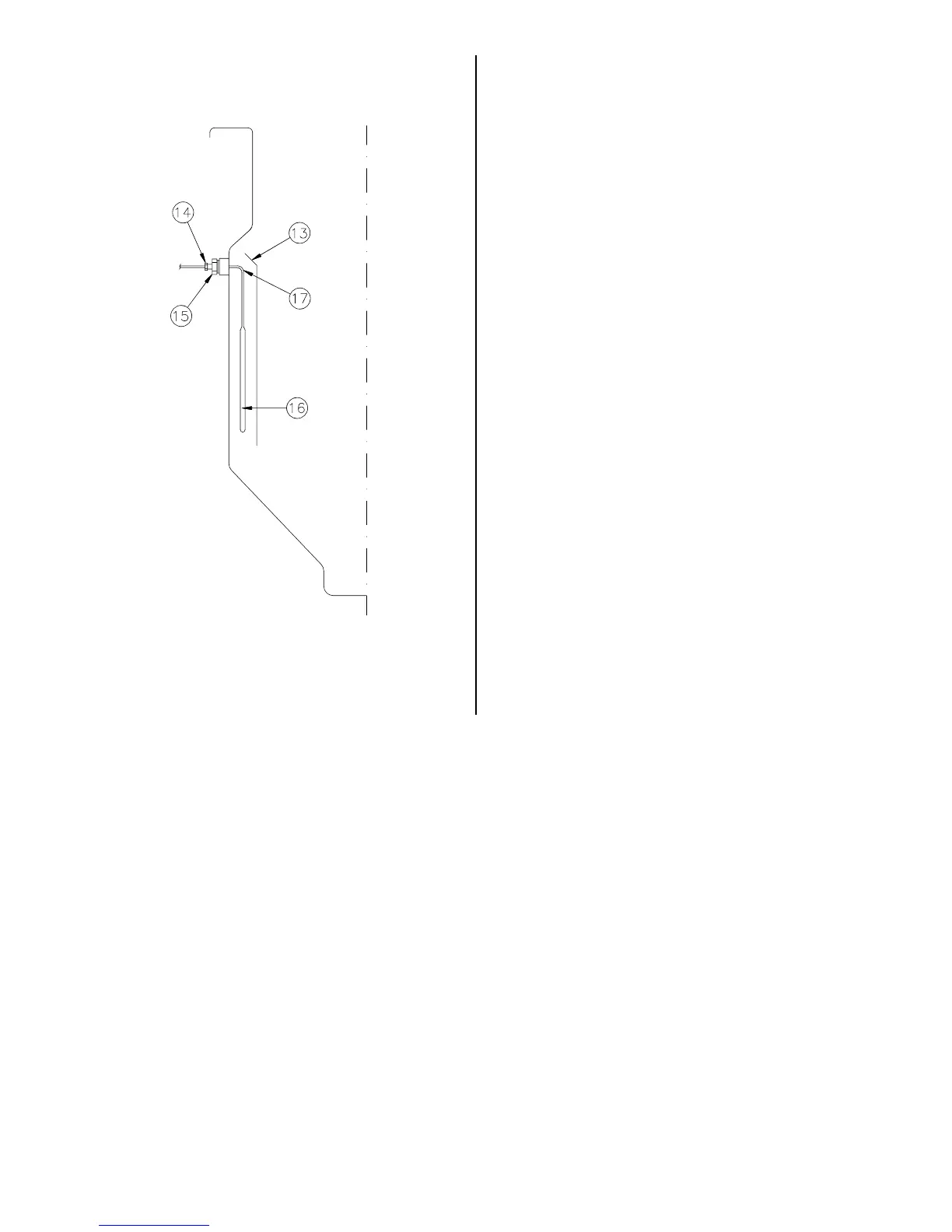

6. Remove small nut (14) then large capil-
lary nut (15) from outside the cooking
well.
7. Pull control bulb (16) out of cooking
well then remove control.
8. Insert new control bulb in same posi-
tion as the original. Pull excess capil-
lary (17) out of cooking well. Bend in
the capillary must be large and smooth
as possible.
9. Install large capillary nut securely after
applying teflon tape on threads.
10. Install small capillary nut finger tight
then tighten 1/4 turn with a wrench.
DO NOT over tighten. Capillary may
collapse or be cut in two.
11. Reconnect wires then mount new con-
trol.
12. Replace thermostat knob.
13. Replace capillary guard.
14. Return cooking oil into cooking well.
15. Cook a load of product and check for
leaks.
16. Tighten smaller nut (14) if necessary.
