Introduction Polycold Cryochiller
Polycold Cryochiller System Components Installation and Operation Manual
Brooks Automation
1-8 214072 Revision B
Legend:
A. Polycold Cryochiller Refrigeration Unit
B. Refrigerant line
C. Feedthrough
D. Chamber Wall
E. Cool Plate
Polycold Cryochiller System Components
Polycold Cryochiller components are shown along with all optional components. Optional components
must be selected when the system is ordered.
Polycold Cryochiller Component List
See figures 1-2, 1-3, and 1-4.
1. Human Machine Interface - HMI - Area
2. Fan Filter Access

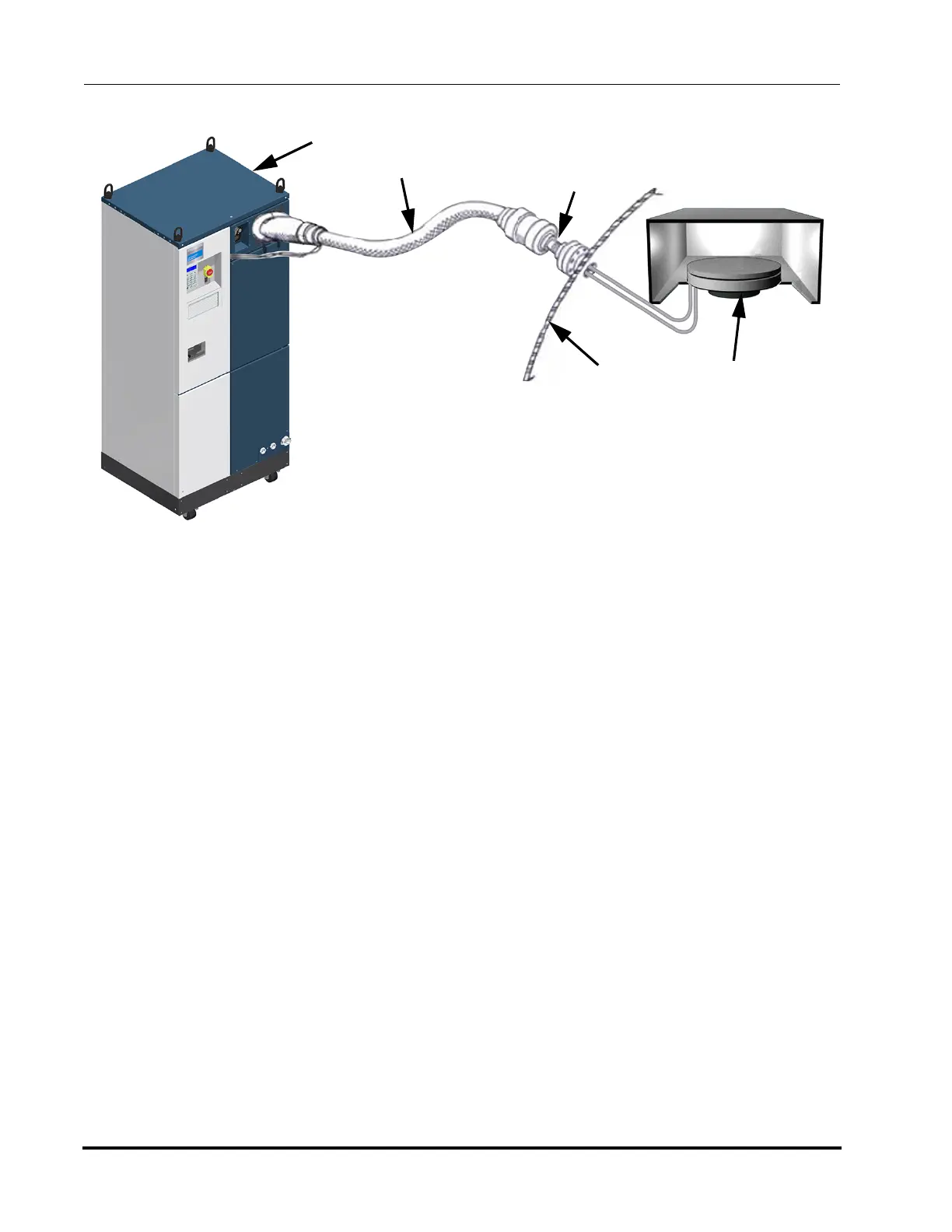

Figure 1-5: Polycold Cryochiller used for Heat Removal
A
B
C
D
E
