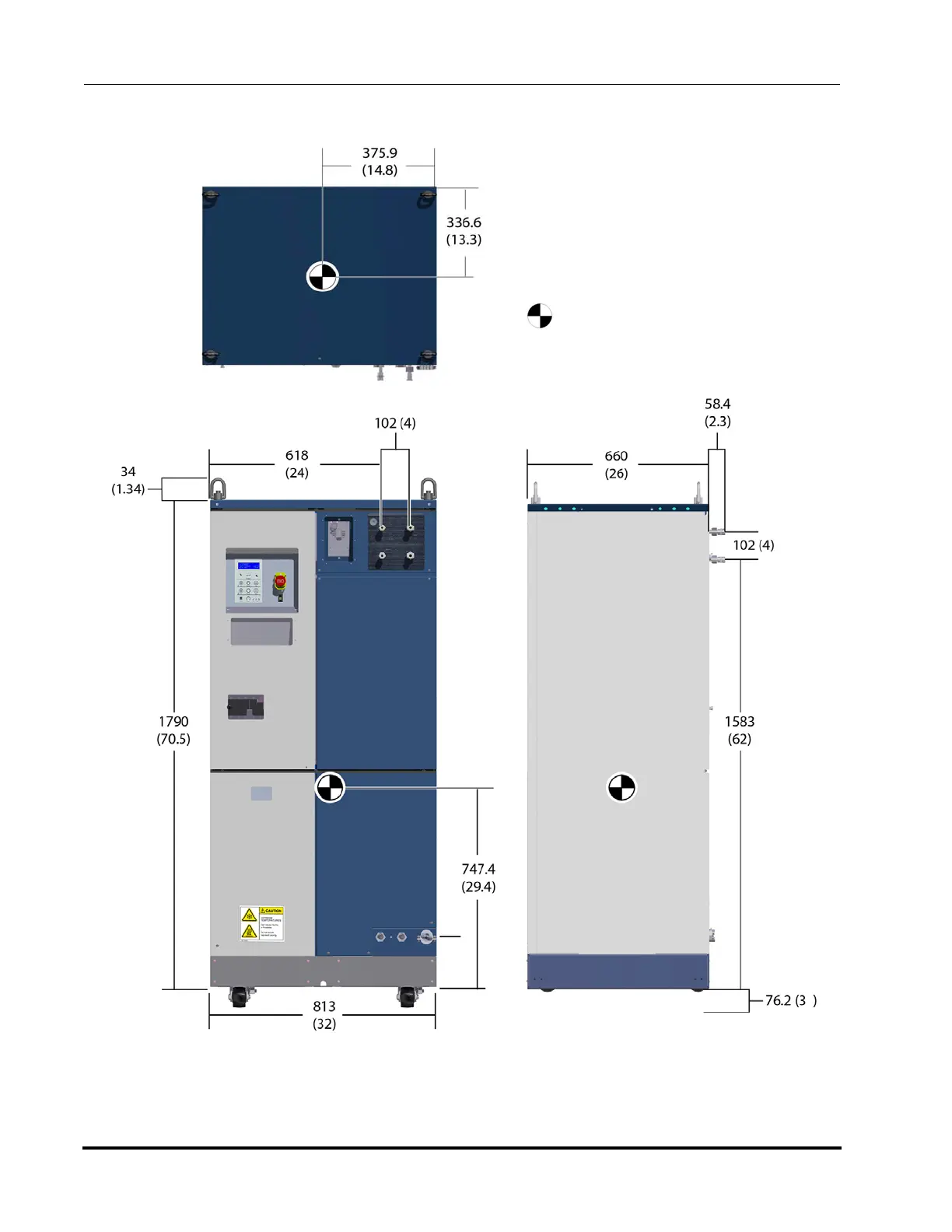

Figure 3-1: Polycold Cryochiller Refrigeration Unit Dimensions
Dimensions are mm (inches) based on a
standard unit.
Center of gravity based on a unit without
casters.
For a unit with casters, increase vertical
dimension by 76.2mm (3 inches)
For a unit with lift hooks folded down, increase
vertical dimension by 34mm (1.34 inches)
