Brooks Polycold MaxCool Series - Page 221

Polycold Cryochiller Appendices
Installation and Operation Manual Appendix F: Feedthroughs
Brooks Automation
214072 Revision B
12-11

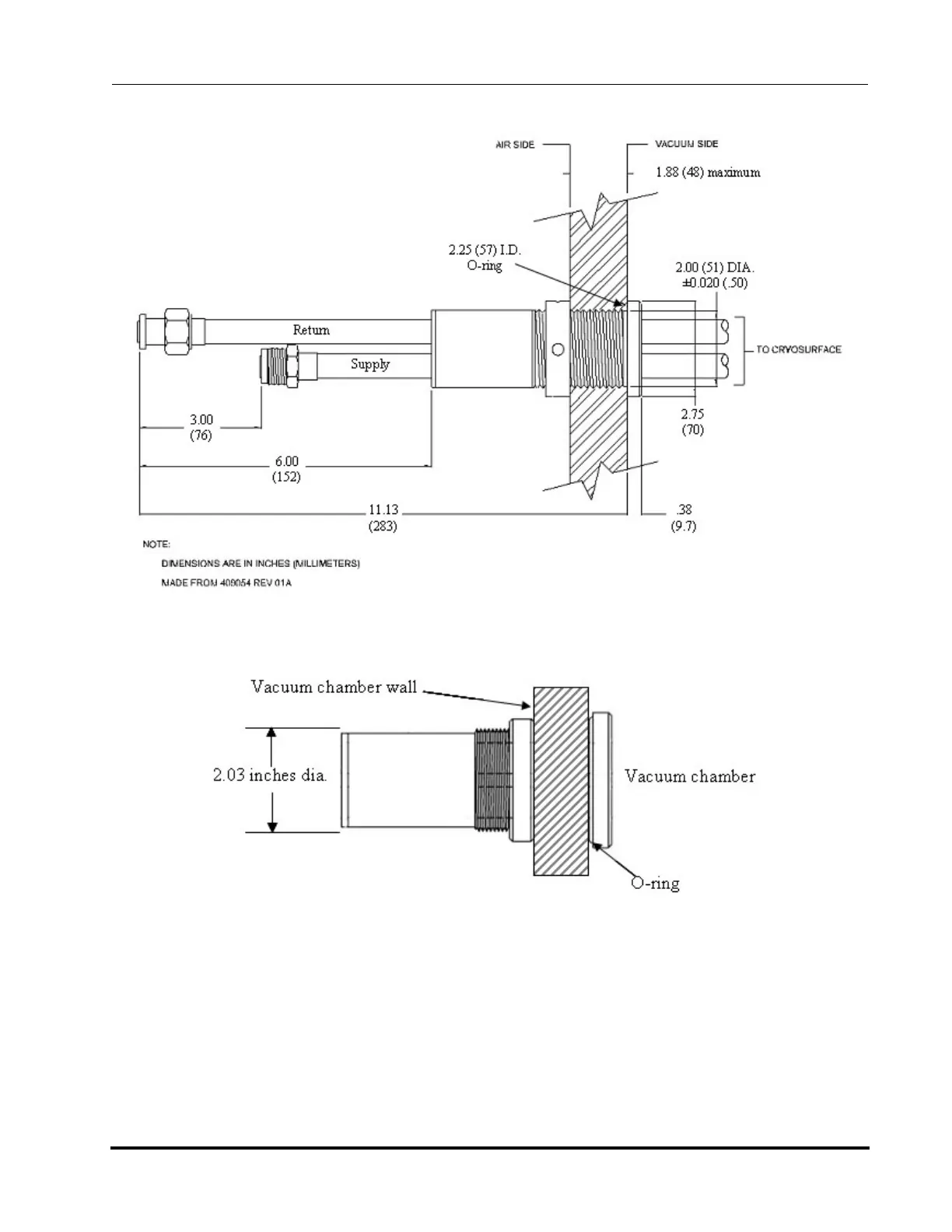

Figure 12-6: Polycold's Two-Inch (50 mm) Feedthrough with Port Requirements
Figure 12-7: Close-up Detail of Feedthrough Connection (Feed and Return Tubes not Shown)
