Brother DCP-J752DW

3-11
Confidential
3

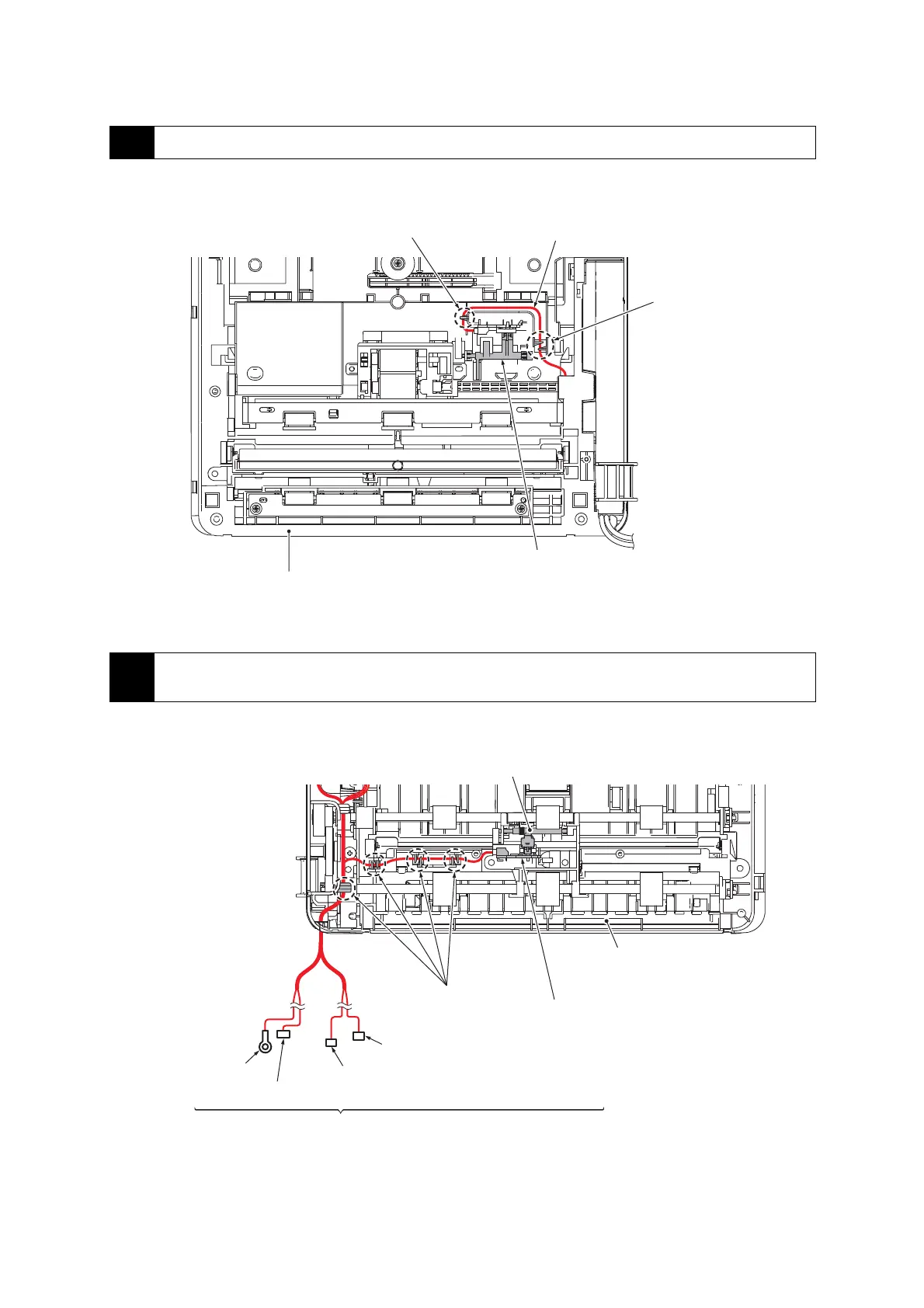

ADF unit reverse side (For ADF models only): document detection sensor harness
4
ADF unit top (For ADF models only): ADF harness ASSY (ADF motor harness and ADF FG wire,
document detection sensor harness, document scanning position sensor harness)
(3_071)
Document detection sensor harness
Cable guide
Cable guide
Document detection actuator
ADF unit (bottom)
(Rear)
(3_073)
ADF unit
Document scanning position sensor PCB ASSY
Cable guide
ADF motor harness
Document detection sensor harness
ADF FG wire
Document scanning position sensor harness
ADF harness ASSY
Document scanning position detection actuator
(Rear)
