Brother DCP-J752DW

3-12
Confidential
Note • Bend the power supply harness in "x" as shown above.
• Bend the PF/registration sensor harness ASSY in "y" as shown above.
• Bend the carriage motor harness, ASF motor harness, and paper feed motor harness in "z"
as shown above.
5

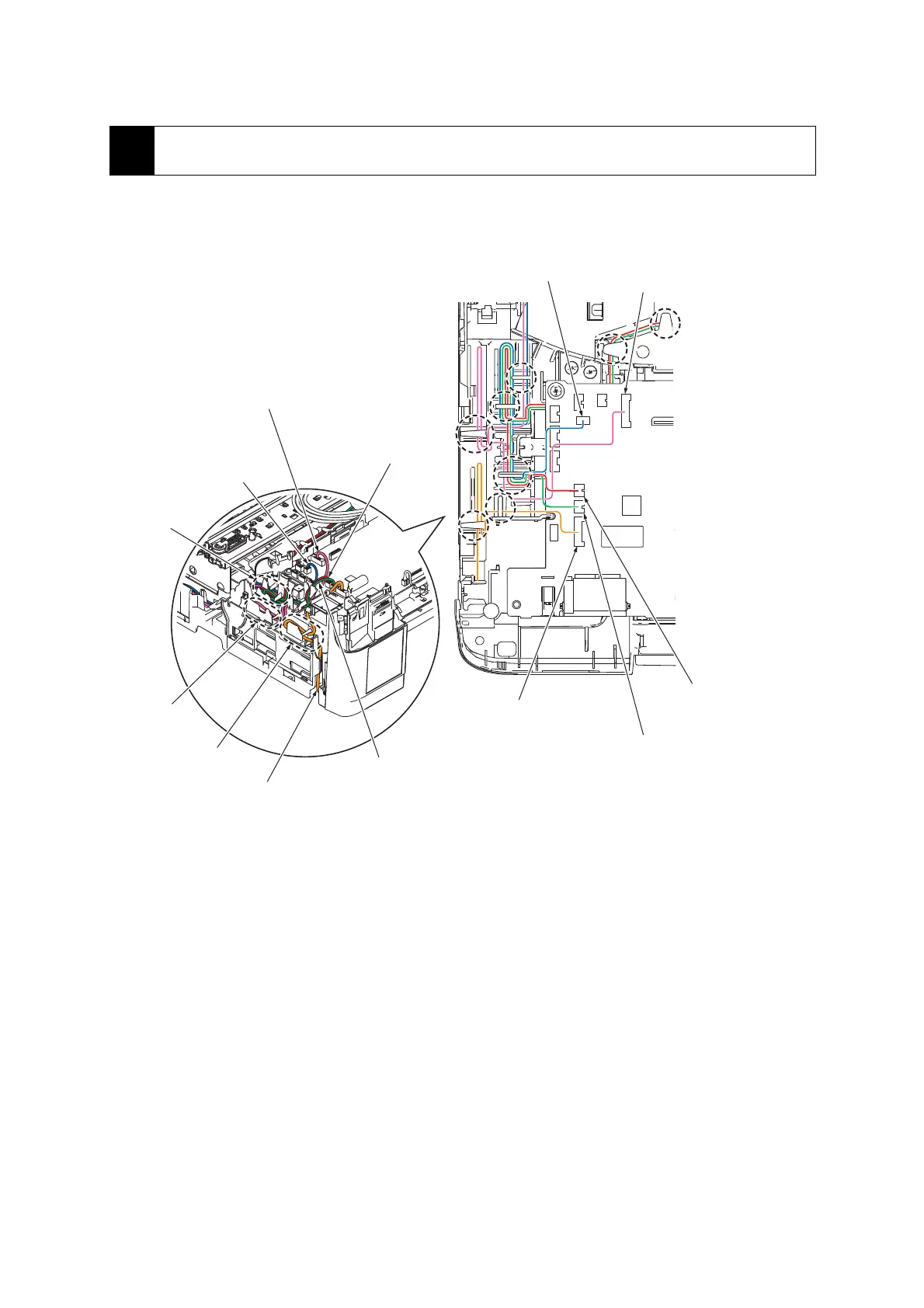

Lower cover upper left side: PF/registration sensor harness ASSY, power supply harness, carriage motor
harness, ASF motor harness, paper feed motor harness
(3_014)
Power supply harness
Main PCB
Power supply harness
Paper feed motor harness
ASF motor harness
PF/registration
sensor harness ASSY
Carriage motor harness
Paper feed motor harness
PF/registration
sensor harness ASSY
Carriage motor harness
Paper feed motor harness
"x" part
"y" part
"z" part
