Brother DCP-J752DW

3-17
Confidential
10

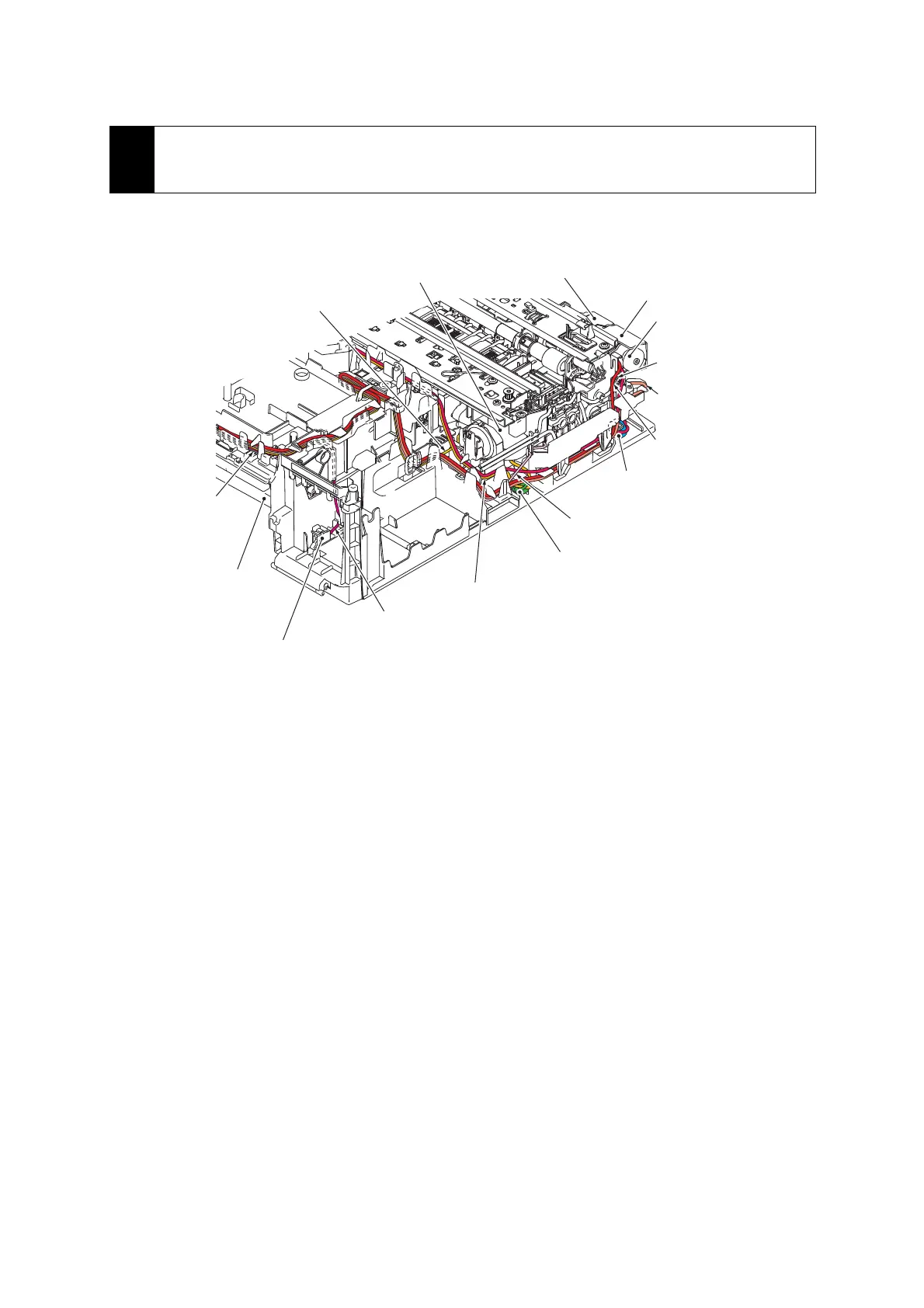

Lower cover right side: ASF motor harness, pressure roller release sensor harness, ASF encoder sensor
harness, purge cam switch harness, carriage motor harness, speaker harness, ink cartridge cover sensor
harness, disc guide sensor harness
(3_023)
Lower cover
Carriage motor
ASF motor
ASF motor/encoder PCB
ASF encoder disk
ASF motor harness
Pressure roller release
sensor harness
ASF motor/encoder sensor
harness
ASF motor harness
ferrite core
Purge cam switch harness
Ferrite core of carriage motor
harness ferrite core
Carriage motor harness
(Right)
Ink cartridge cover sensor harness
(Ink cartridge cover sensor ASSY)
Disc guide
sensor harness
Speaker harness
