Brother DCP-J752DW

3-18
Confidential
11

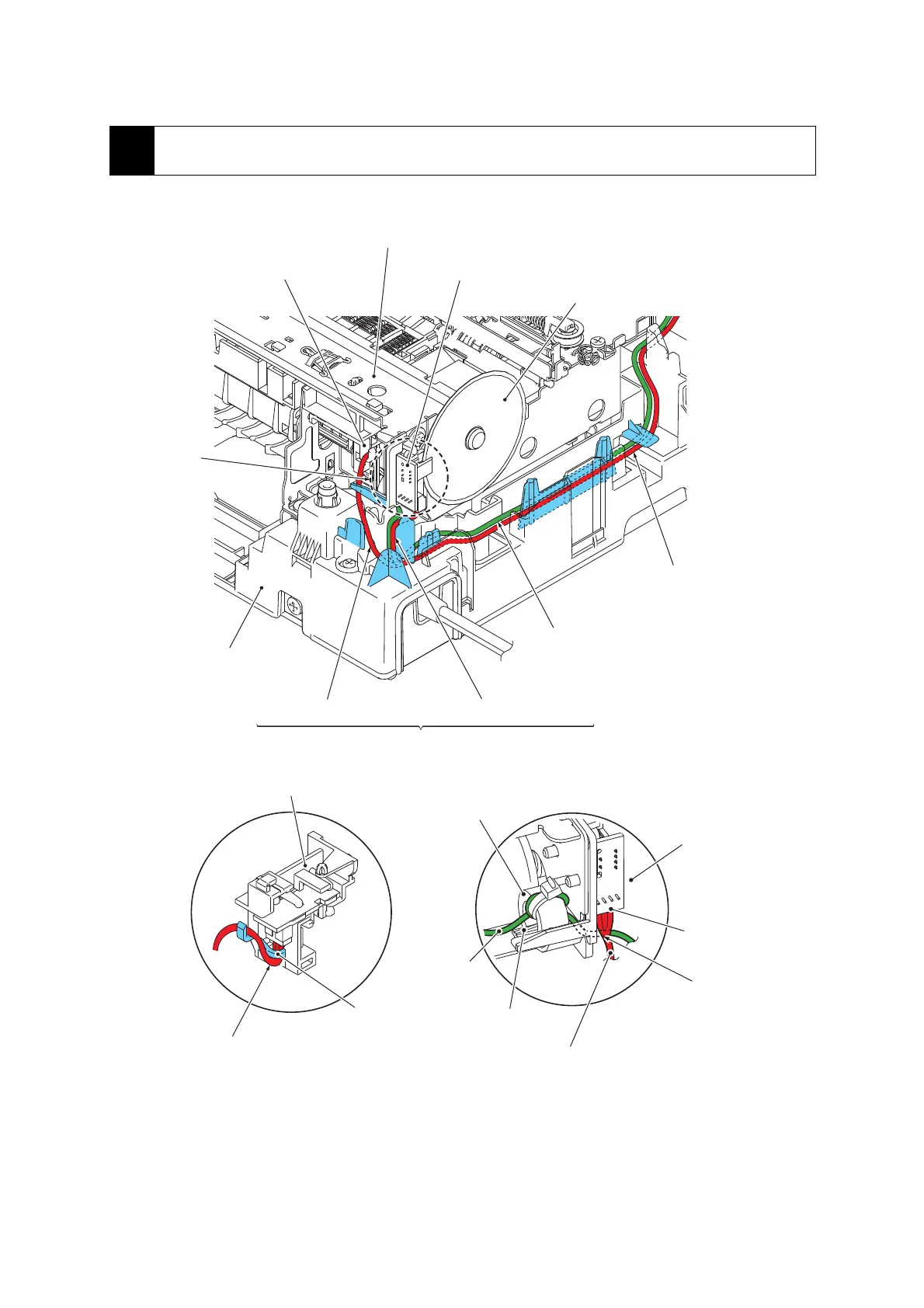

Lower cover left rear side: PF/registration sensor harness ASSY (PF encoder sensor harness and
registration sensor harness), paper feed motor harness
(3_024)
CR guide rail
Registration sensor holder
Lower cover
PF encoder sensor PCB ASSY
PF encoder disk
PF/registration sensor
harness ASSY
Paper feed motor
harness
PF encoder sensor harness
Registration sensor harness
PF/registration sensor harness ASSY
Ferrite core
PF encoder
sensor PCB
Registration sensor holder
Encoder PCB
support
Paper feed motor harness
passing through the notches
of the encoder PCB support
Recording paper
feeding path
motor harness
Latch
PF encoder sensor harness
Cables guide
Registration sensor harness
Section A
Section A
