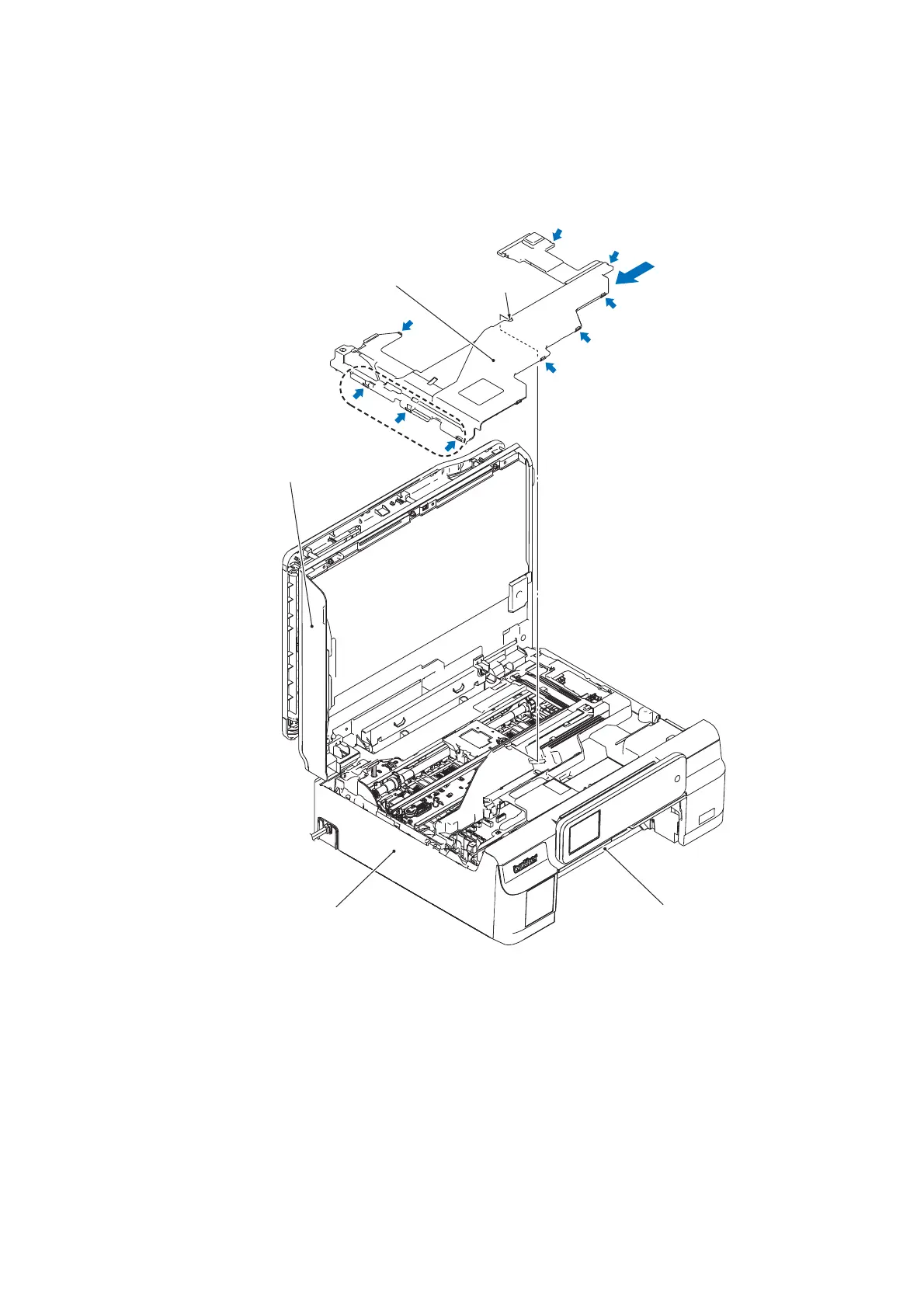

(7) Release hook ① and ② of the harness cover then release hook ③ by lightly inserting a flathead
screwdriver. Next, remove tab ④ , then while moving it to the left, release hook ⑤ .
Note
Follow the order illustrated below when removing the harness cover. Not doing so may damage
the upper cover hooks.
Ԙ
Ԝ
ԙ
Ԛ
ԛ
(3_035)
Document scanner unit
Tab
Harness cover
Upper cover
Lower cover
