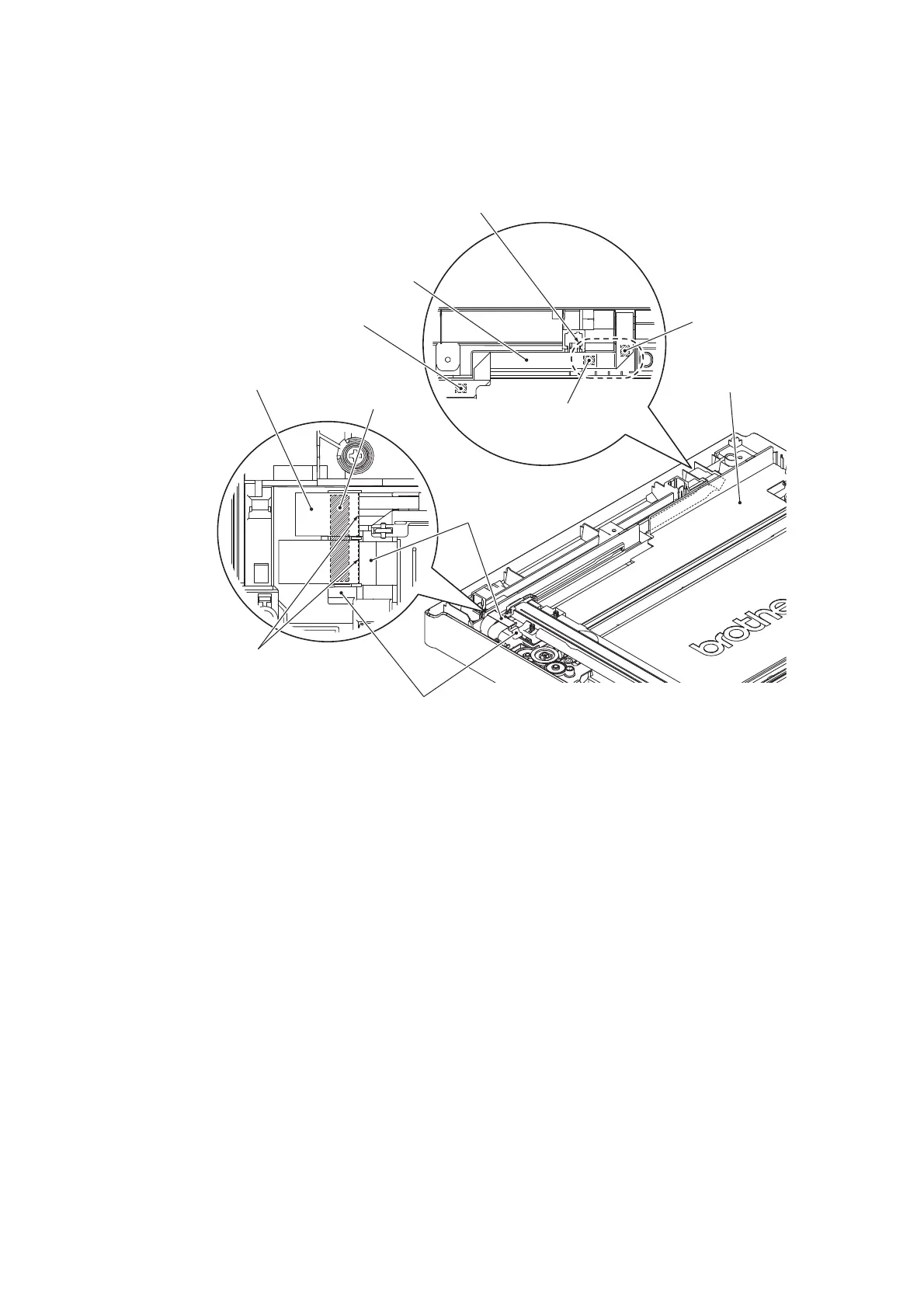

2) Connect the CIS flat cable to the CIS unit, and route it around the cable guide as shown
below.
(3_061)
② Double-sided tape
CIS flat cable
[CIS side] Align the fold of the CIS
flat cable and attach it to the CIS
carriage without any bending.
Document scanner
bottom cover
CIS flat cable
[Main unit side] Install the CIS flat cable in the following order and adjust
the bend of the cable in the location marked by the dotted circle.
③ Double-sided tape
Double-sided tape
①Double-sided tape
CIS flat cable
CIS carriage
