3-90
Confidential

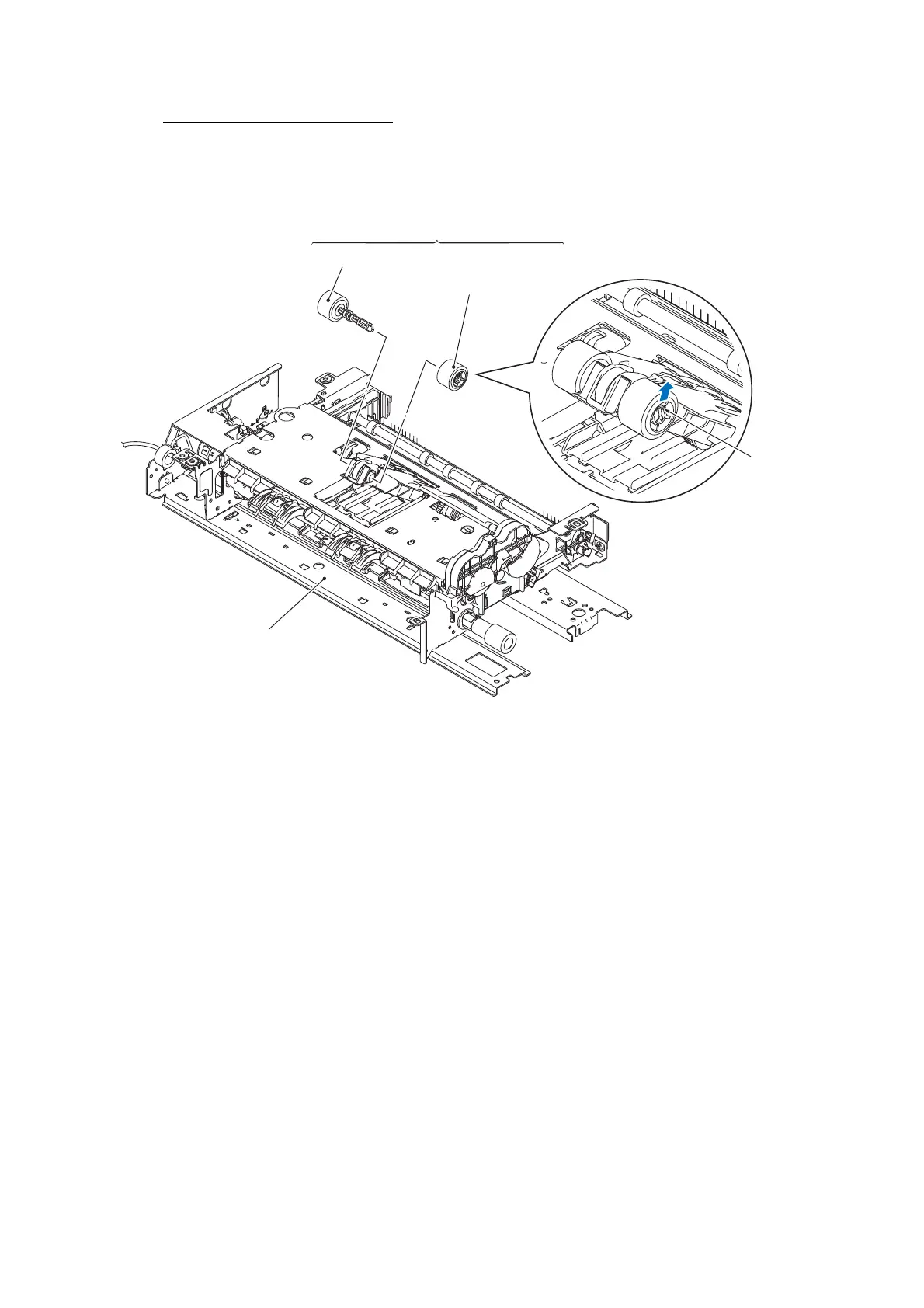

Paper pull-in roller holder ASSY
(12) Pull the pawl on the paper pull-in roller R, remove the paper pull-in roller R, then rotate the
paper pull-in roller L to remove it.
Assembling Note Before attaching the paper pull-in roller L, refer to Section 5 in this chapter to
apply the specified lubricant to the specified points on its shaft.
Paper pull-in roller holder ASSY
Paper pull-in roller L
Engine unit (bottom)
Paper pull-in roller R
Pawl
To Next Page
