3-6

Confidential

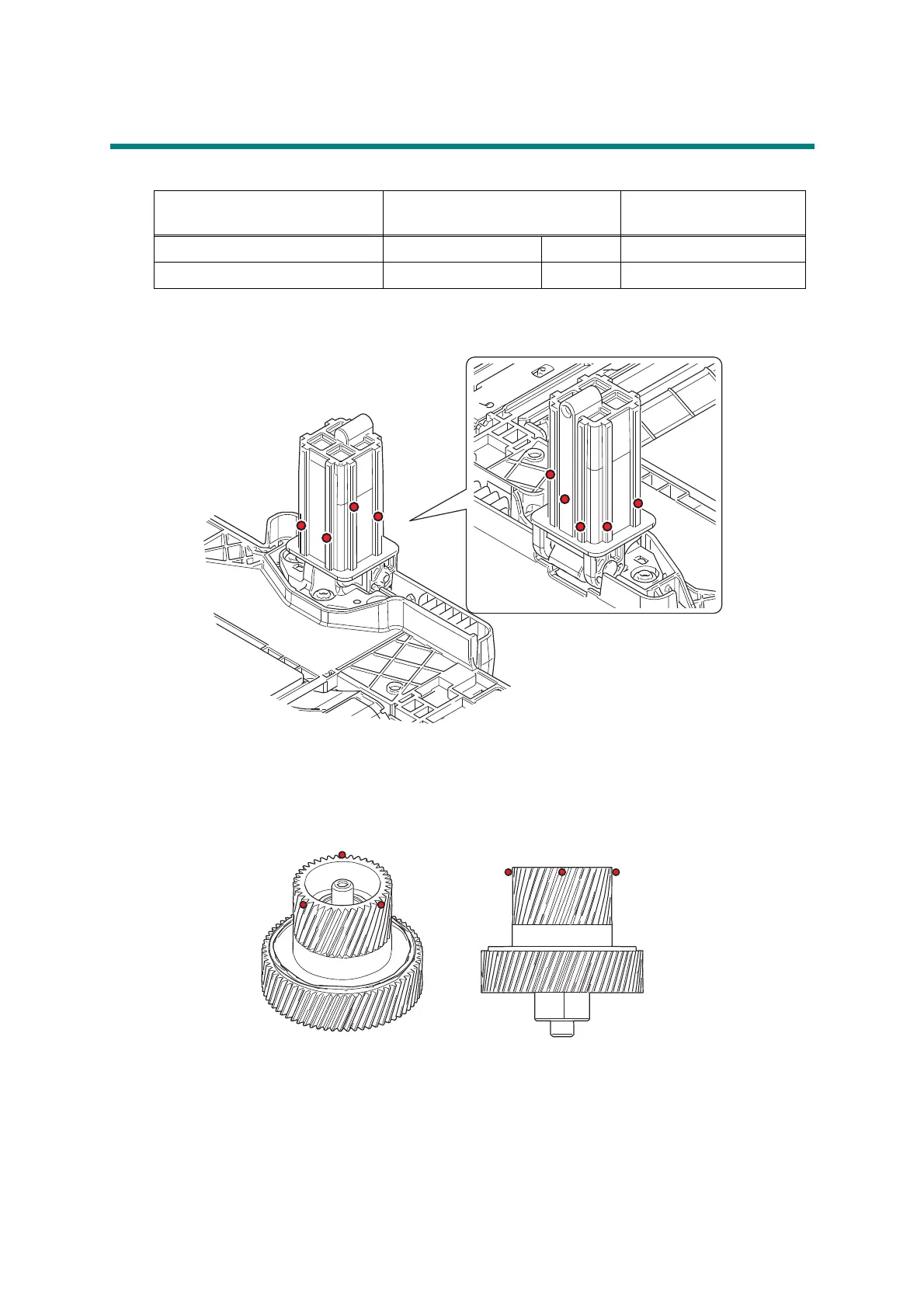

5. LUBRICATION

 Hinge ASSY L

Fig. 3-3

 Fuser gear 67R/40R

Fig. 3-4

Lubricating oil type

(Maker name)

Lubrication point Quantity of lubrication

BDX313 (A) (Kanto Kasei) Hinge ASSY L 9 places 2.0 mm dia. ball

FLOIL BG-10KS (Kanto Kasei) Fuser gear 67R/40R 3 places 1.5 to 2.0 mm dia. ball
