Brother DCP-L2500D - ADF Separation Pad Holder ASSY

To Next Page

To Previous Page

3-43

Confidential

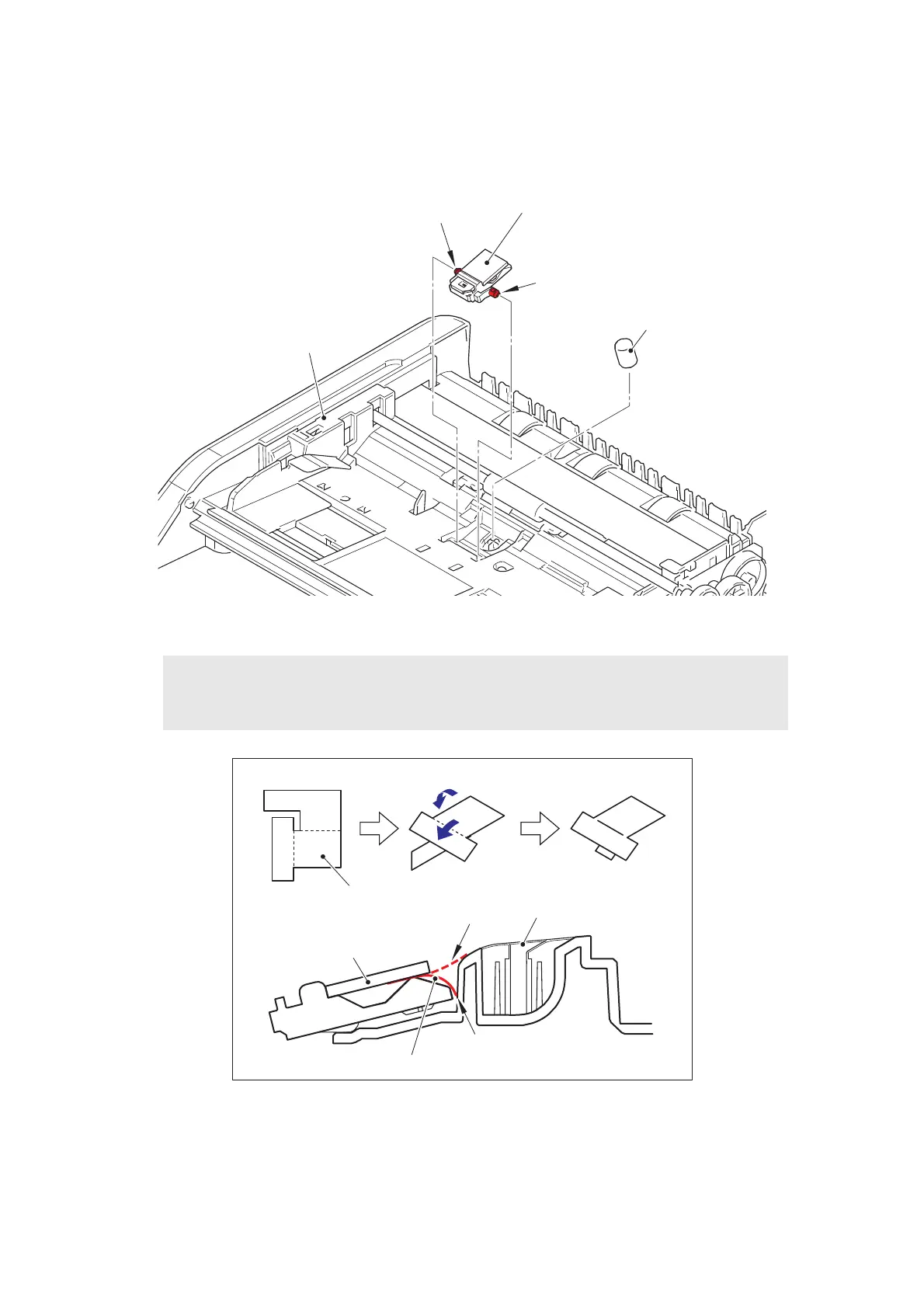

9.12.6 ADF Separation Pad Holder ASSY

(1) Release the bosses to remove the ADF separation pad holder ASSY from the ADF unit.

(2) Remove the ADF spring from the ADF unit.

Fig. 3-32

Fig. 3-33

Assembling Note:

• Noise may be caused if the end of the support film is on the upper document chute.

Check that the end of the support film is positioned as shown in the figure below.

ADF spring

Boss

ADF separation pad holder ASSY

Boss

ADF unit

Support film

ADF separation

pad holder ASSY

Support film

Upper document chute
