9.13 Document Cover ASSY (For models without ADF)
(1) Release the hooks of the hinge L and the hinge R to remove the document cover ASSY
by lifting it up.
(2) Remove the taptite cup B M3x10 screw to remove the hinge L support and the hinge L
from the hinge arm L.
(3) Remove the taptite cup B M3x10 screw to remove the hinge R support and the hinge R
from the hinge arm R.

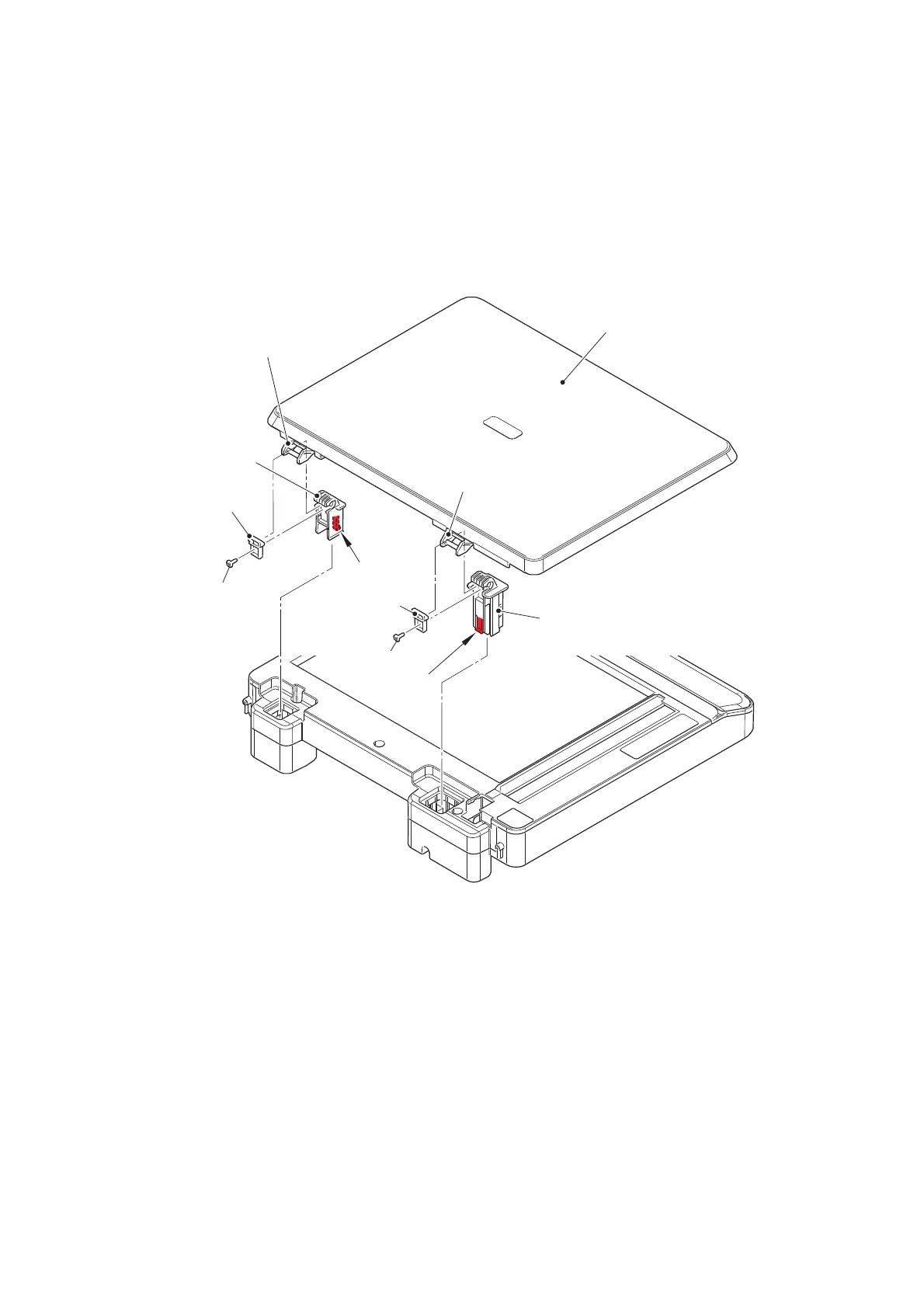

Fig. 3-51
Document cover ASSY
Hook
Hinge L
Taptite cup B M3x10
Hinge L support
Hook
Taptite cup B M3x10
Hinge R support
Hinge R
Hinge arm L
Hinge arm R
