9.25 Filter
(1) Release each hook to remove the air duct.
(2) Pull out the rib on the air duct in the direction of the arrow, and remove the filter.

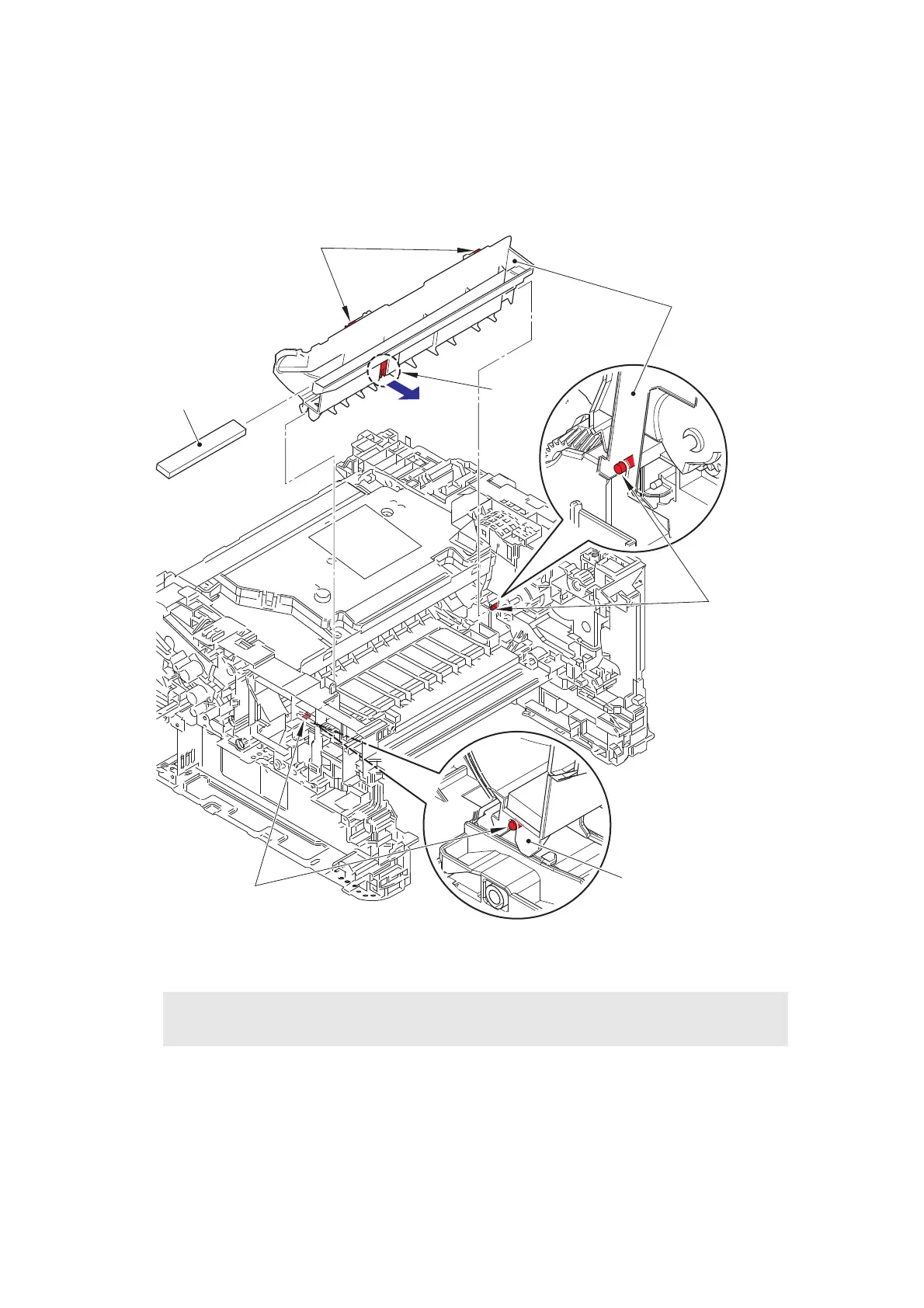

Fig. 3-82
Assembling Note:
• When attaching the air duct, engage the notches on the air duct with the pins.
Filter
Hooks
Rib
Air duct
Pin
Pin
Air duct
<Back side>
