3-70

Confidential

9.17 Lock Claw, Pull Arm Guide

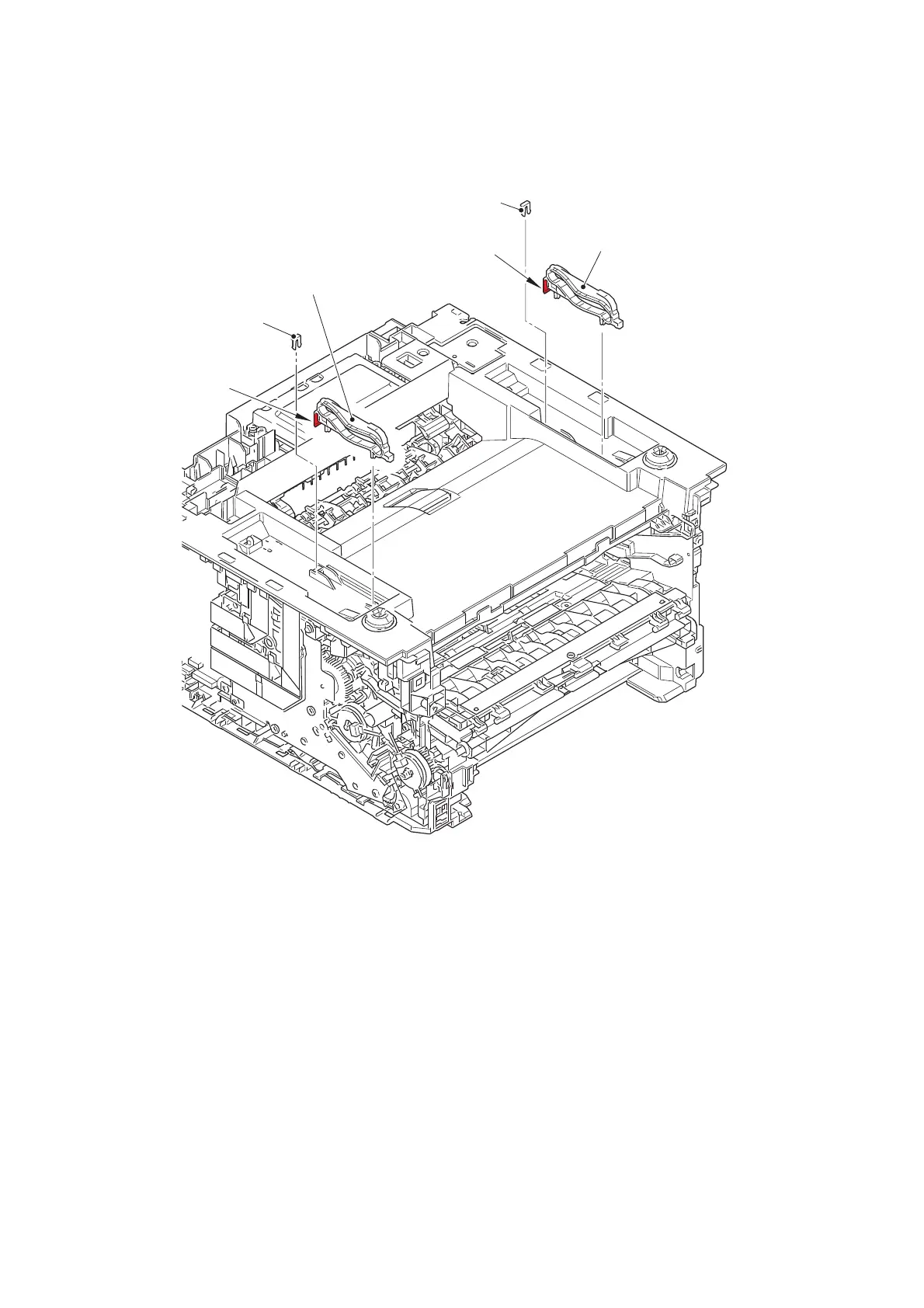

(1) Remove the lock claw. Release the hook to remove the pull arm guide. (2 locations)

Fig. 3-67

Pull arm guide

Lock claw

Hook

Lock claw

Hook

Pull arm guide
