9.9 Side Cover L,
Handset Holder ASSY (For models with handset)
(1) Remove the taptite bind B M4x12 screw.
(2) Release the each hook on the side cover L in order of the arrow A to C, and remove the
side cover L from the main body.
(3) Disconnect the hook harness from the main PCB ASSY. (For models with handset)

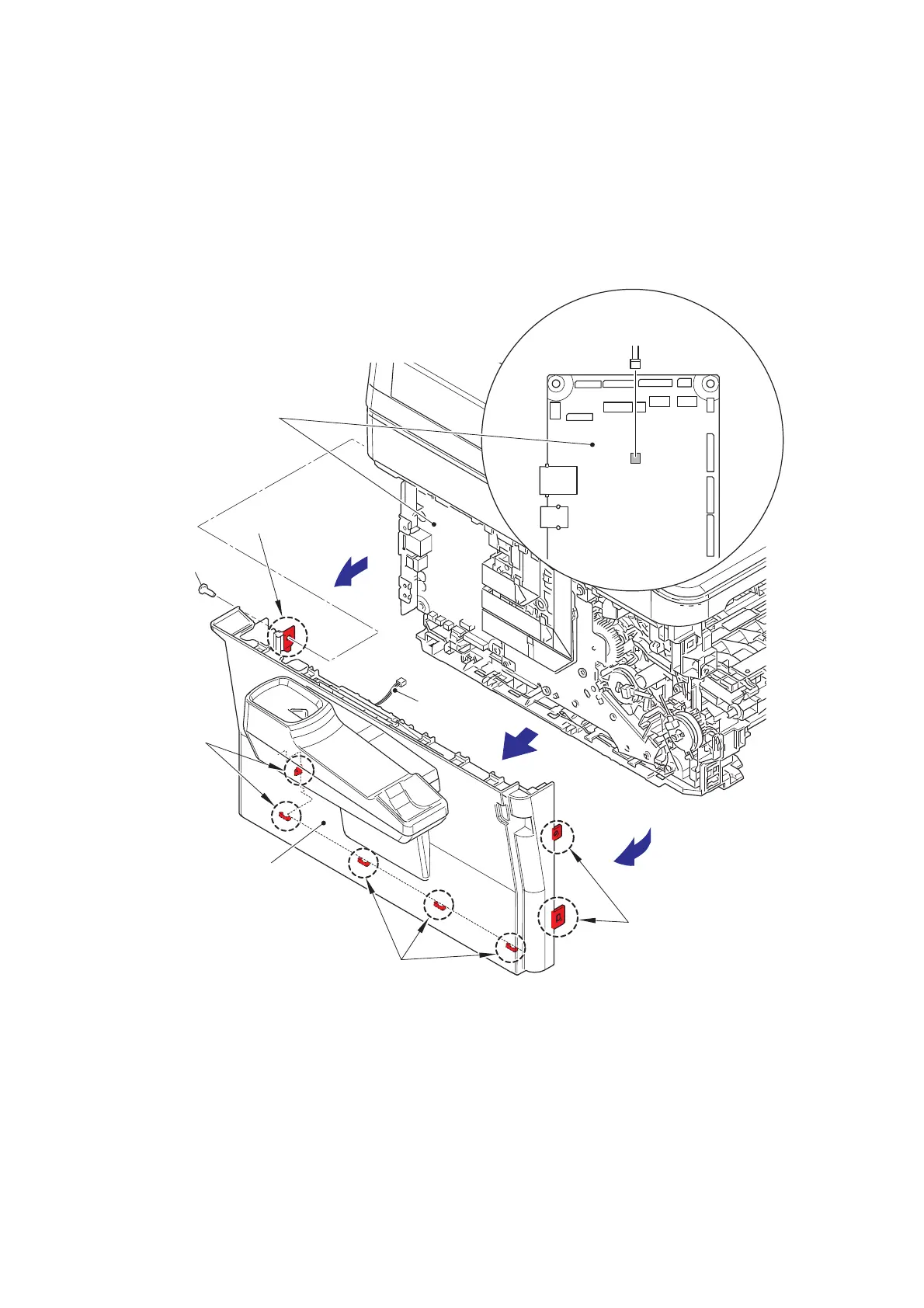

Fig. 3-18
Harness routing: Refer to “3. Left side of the machine”.
Hooks
Hooks
Side cover L
Hooks
Hook
C
B
A
Taptite bind
B M4x12
Hook harness
Main PCB ASSY
Hook harness
