9.6 Side Cover R
(1) Remove the taptite bind B M4x12 screw.
(2) Release the each hook on the side cover R in order of the arrow A to C, and remove the
side cover R from the main body.

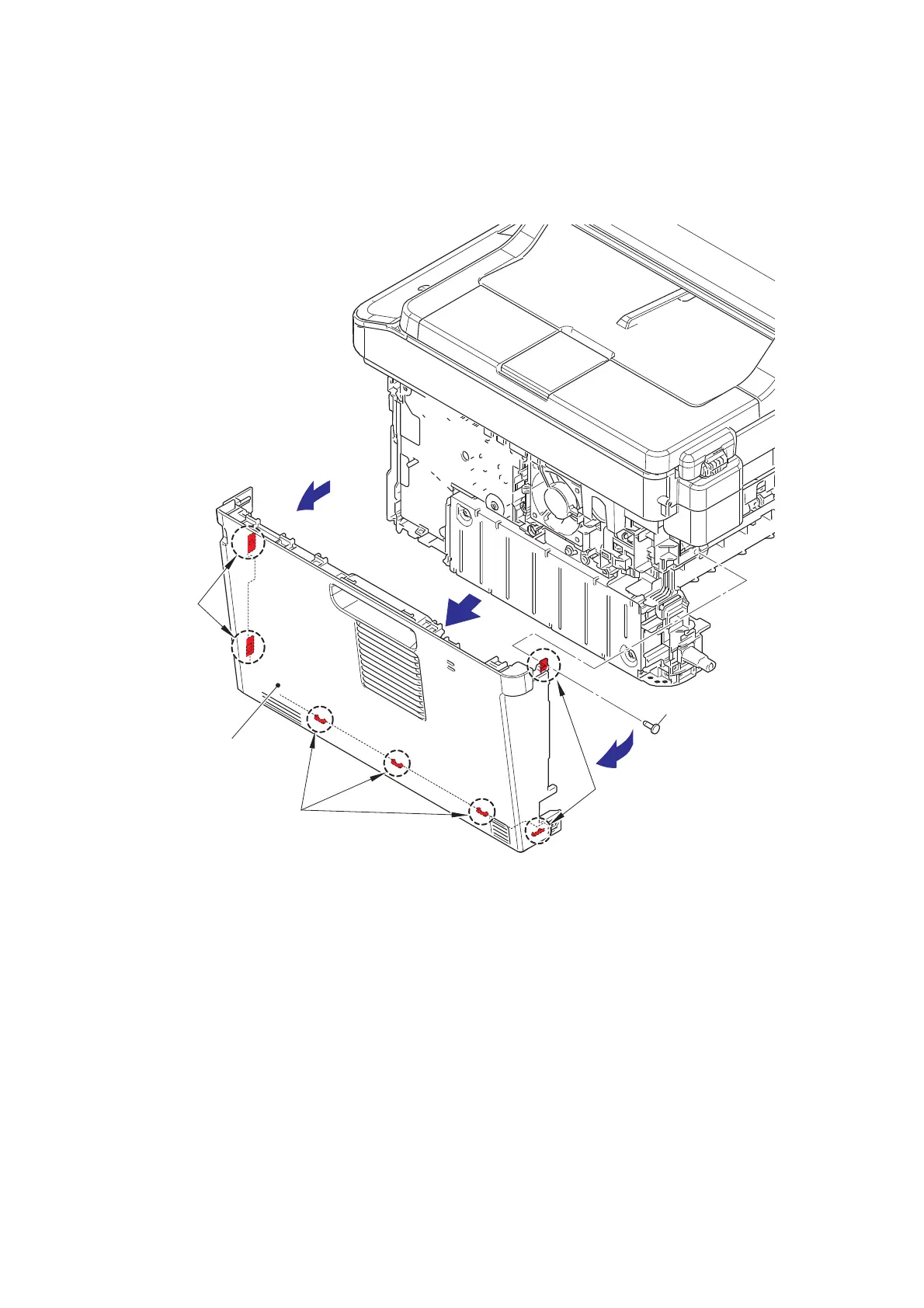

Fig. 3-15
Hooks
Hooks
Side cover R
Hooks
C
B
A
Taptite bind B M4x12
