Brother DCP-L2500D Service Manual

5-1
Confidential
CHAPTER 5 SERVICE FUNCTIONS
1. FUNCTION CODE
Maintenance mode is exclusively designed for checking, setting and adjusting the machine
using the keys on the control panel. These keys allow you to execute sensor operation
check, test printing, log information and error code display, or worker switch (WSW) setting.
1.1 How to Enter Maintenance Mode
1.1.1 Method of entering maintenance mode for service personnel
<Operating Procedure>
For models without touch panel
(1) Press the [Menu], and then the [Start] key while the machine is in the ready state. Then,
press the [▲] key four times to enter the maintenance mode.
(2) "■■ MAINTENANCE ■■■" is displayed on the LCD to indicate that the machine entered
the initial state of maintenance mode. The machine is ready to accept entry via keys.
(3) To select any of the maintenance mode functions shown in the "1.2 List of Maintenance
Mode Functions", press the [▲] or [▼] key. Check that the desired maintenance mode is
displayed on the LCD, and press the [OK] key. For models with keypad, you can enter
the desired function code number directly with the keypad.

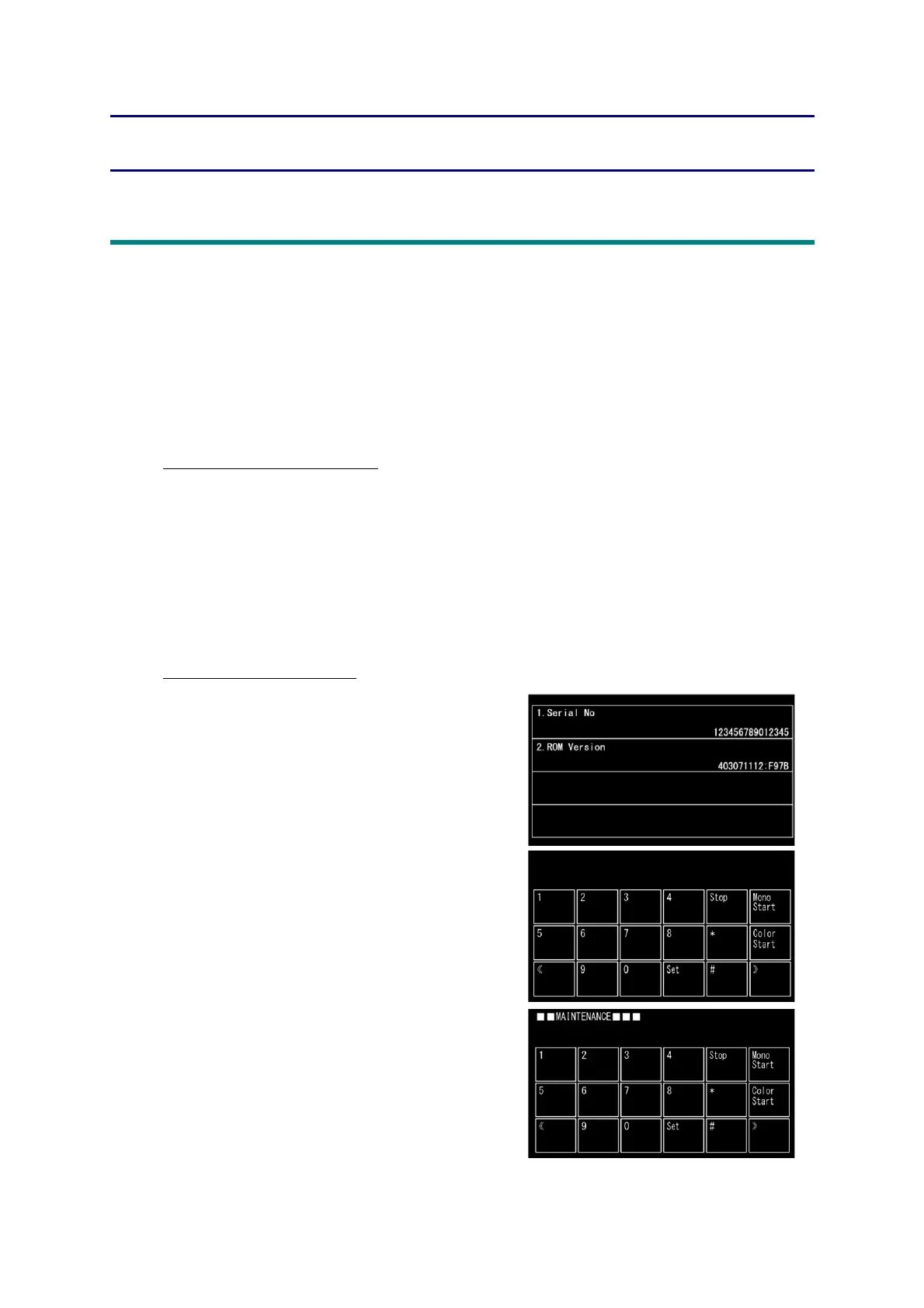

For models with touch panel
(1) Press and hold the [Home] key for
approximately five seconds while the machine
is in the ready state. The display shown on the
right appears on the LCD.
(2) Press and hold the blank field at the bottom for
approximately two seconds. The display
shown on the right appears on the LCD.
(3) Press the [*], [2], [8], [6], and [4] keys in this
order. The display shown on the right appears
on the LCD, and the machine enters into
maintenance mode.
(4) To select any of the maintenance mode
functions shown in the "1.2 List of
Maintenance Mode Functions", use the keypad
to enter the maintenance mode function code
to be executed.

Brother DCP-L2500D Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	26 ppm
Duplex print speed (black, normal quality, A4/US Letter)	6.5 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4, 6, 9, 16, 25
Time to first copy (black, normal)	10 s
Copy speed (black, normal quality, A4)	26 cpm
Scan to	E-mail, File, Image, OCR
Scan drivers	ICA, SANE, TWAIN, WIA
Grayscale levels	256
Input color depth	30 bit
Maximum scan area	A4 (210 x 297) mm
Output color depth	24 bit
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	600 x 2400 DPI
Faxing	No
Printing colors	Black
Maximum duty cycle	10000 pages per month
Recommended duty cycle	250 - 2000 pages per month
Number of print cartridges	1
Page description languages	GDI
Processor family	ARM9
Sound power level (standby)	33 dB
Sound pressure level (printing)	49 dB
Sound pressure level (quiet mode)	45 dB
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	100 sheets
Multi-Purpose tray input capacity	1 sheets
Auto document feeder (ADF) input capacity	35 sheets
Custom media width	76.2 - 215.9 mm
Custom media length	127 - 355.6 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Thick paper, Thicker paper, Thin paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Display	LCD
Product color	Black, Grey
Market positioning	Home & office
Display number of lines	2 lines
Display number of characters	16
Online services supported	Evernote
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print
Direct printing	-
Standard interfaces	USB 1.1, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1104 W
Power consumption (off)	0.08 W
Power consumption (standby)	60 W
Power consumption (PowerSave)	6.6 W
Power consumption (average operating)	480 W
Minimum storage drive space	500 MB
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Sustainability certificates	Nordic Swan Ecolabel, Blue Angel, ENERGY STAR
Package depth	567 mm
Package width	517 mm
Package height	414 mm
Package weight	12500 g
Storage temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	409 mm
Width	398.5 mm
Height	267 mm
