3-69
Confidential
7) Pass the first side CIS flat cable through the flat core.
8) Peel the release liner of the two pieces of double-sided tape attached to the document
scanner bottom cover ASSY, and secure the first side CIS flat cable with the tape as
shown in the figure below.

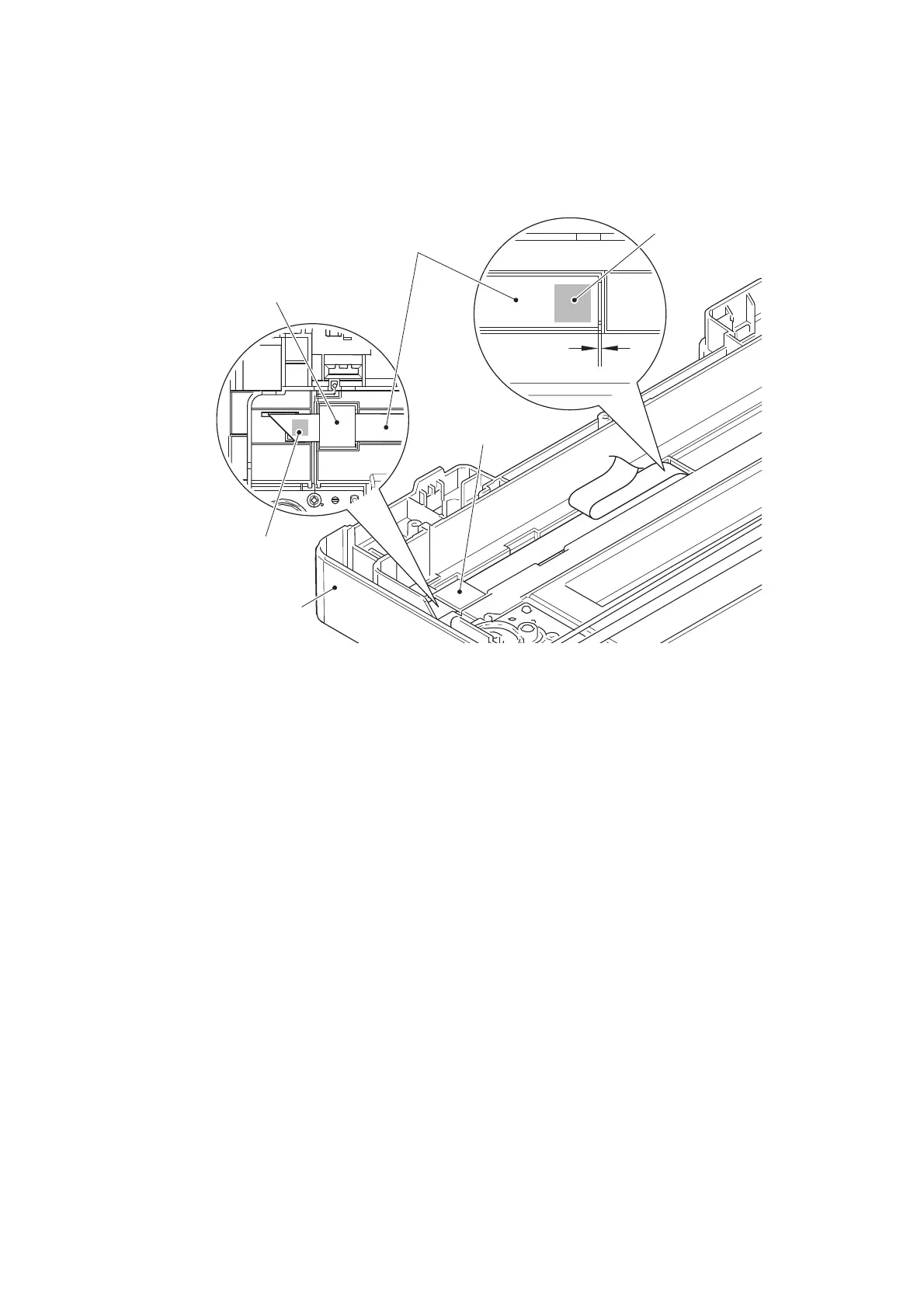

Fig. 3-66
Harness routing: Refer to “9. Scanner unit”.
First side CIS flat cable
1 mm
Double-sided tape
Document scanner
bottom cover ASSY
Double-sided tape
Flat core
Flat core
To Next Page
