3-17

Confidential

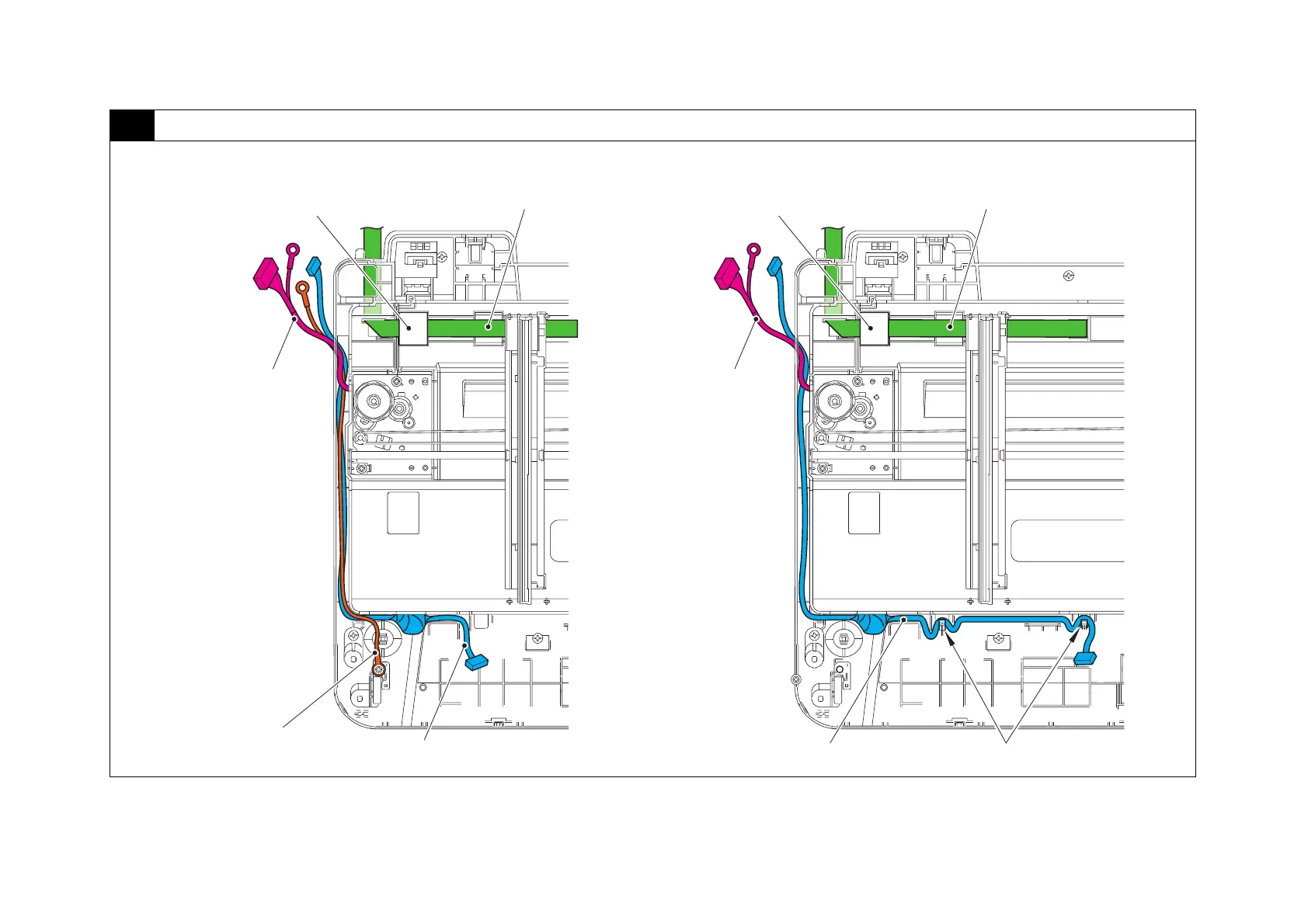

9 Scanner unit

Harness colors are subject to change for some reason.

First side CIS flat cable

FB harness

unit (WH)

Flat coreFlat core

Panel FG harness (GN)

Panel harness (WH)

Panel harness (WH)

<For models with touch panel> <For models without touch panel>
