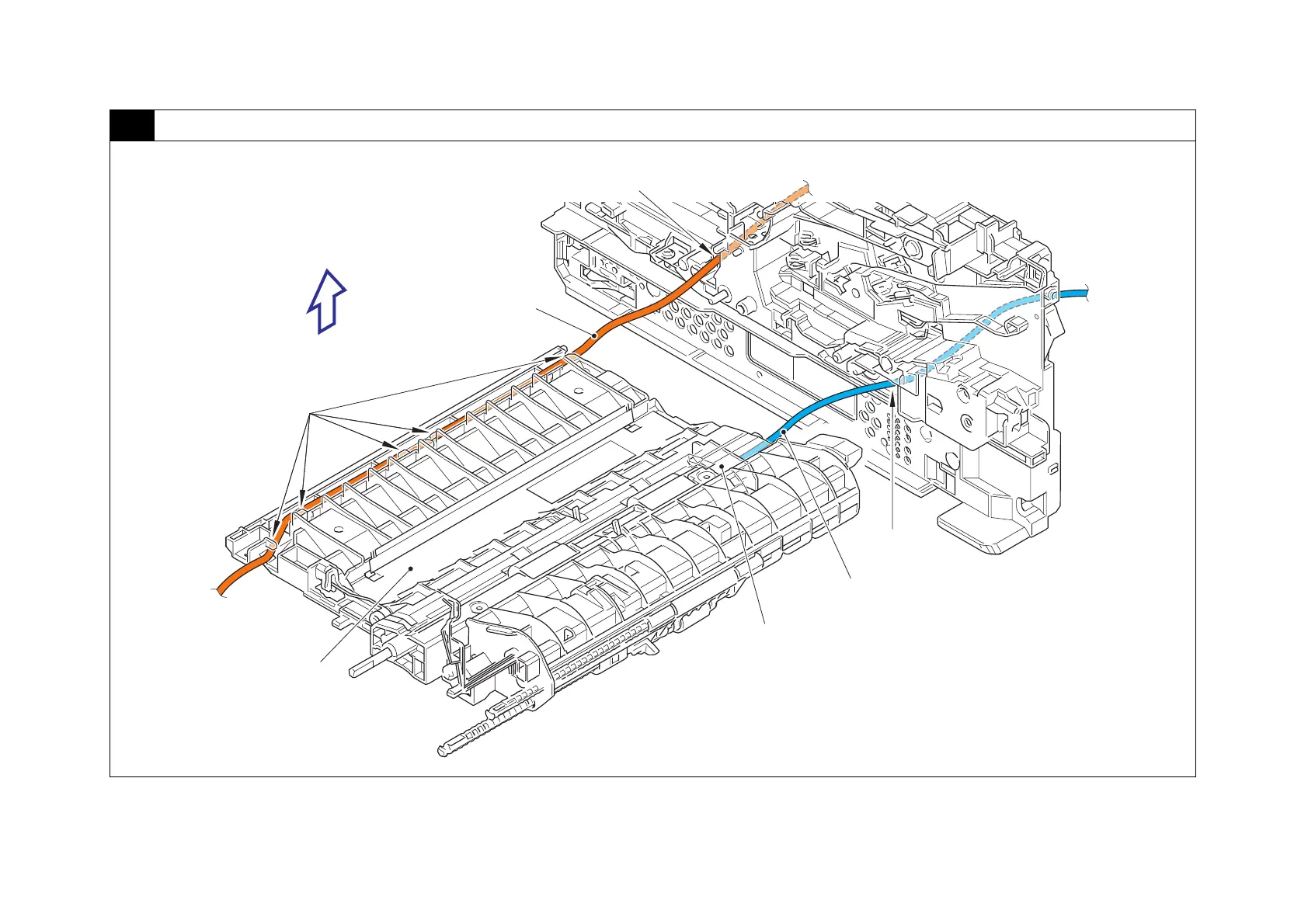

2 Top side of the registration chute

Harness colors are subject to change for some reason.

Registration front/rear sensor PCB harness (RD, BL, WH, BK)

LVPS harness (WH, BR)

Guides

Registration front/rear sensor PCB ASSY

Registration chute

Hole

Hole

Top side
