Brother DCP-L2500D

To Next Page

To Previous Page

5-18

Confidential

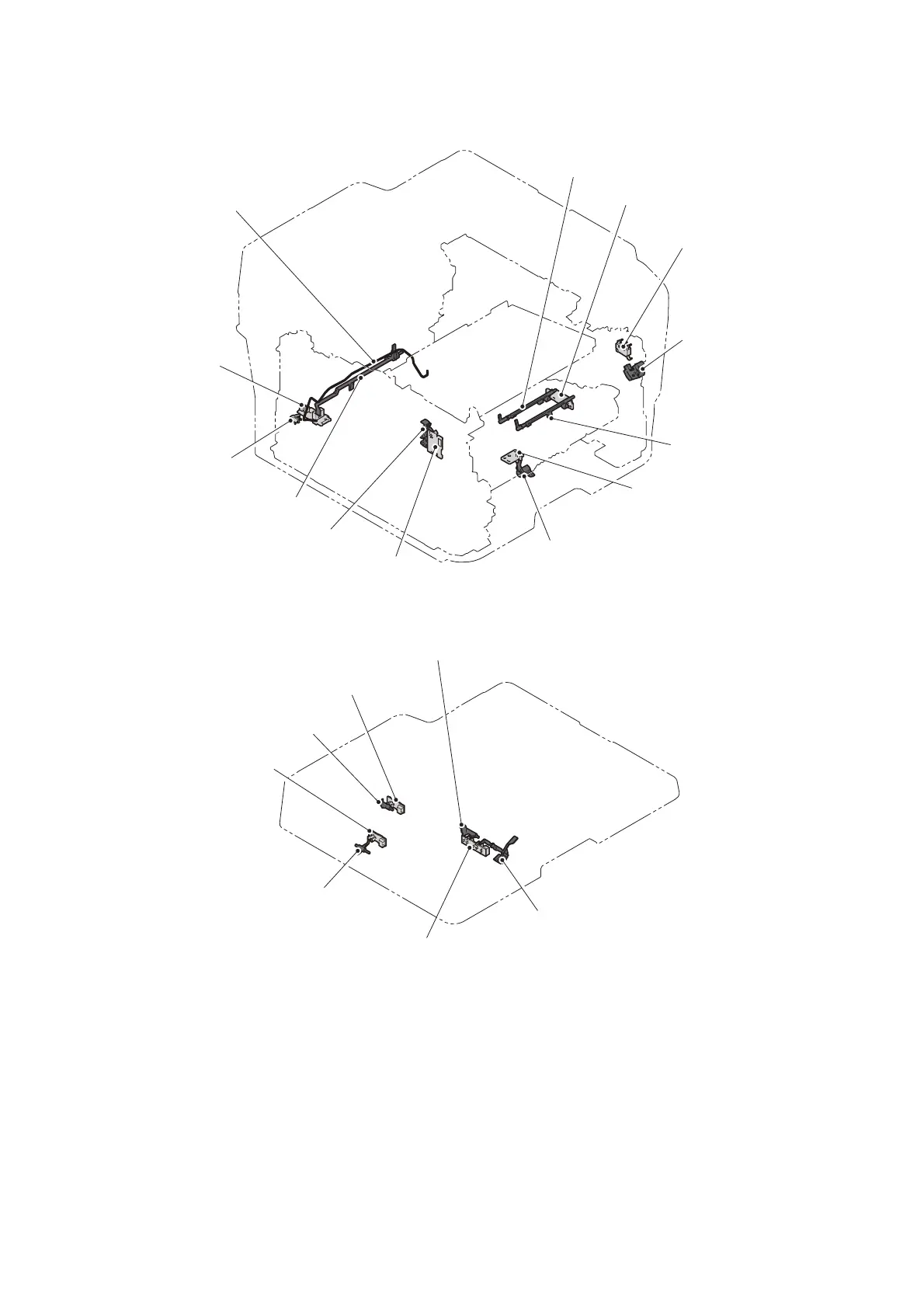

 Location of sensors

Fig. 5-9

Fig. 5-10

Registration rear actuator

Eject sensor

Registration front

actuator

Back cover/duplex

tray sensor

Front cover sensor

Internal temperature sensor

New toner actuator

New toner sensor

Registration front/rear sensor

Front cover sensor

lever

Paper feed sensor

Paper feed actuator

Eject actuator

Document detection actuator

ADF cover actuator

ADF cover/document detection

sensor

First side document scanning

position actuator

First side document

scanning position sensor

Second side document

scanning position actuator

Second side document

scanning position sensor
