3-34

Confidential

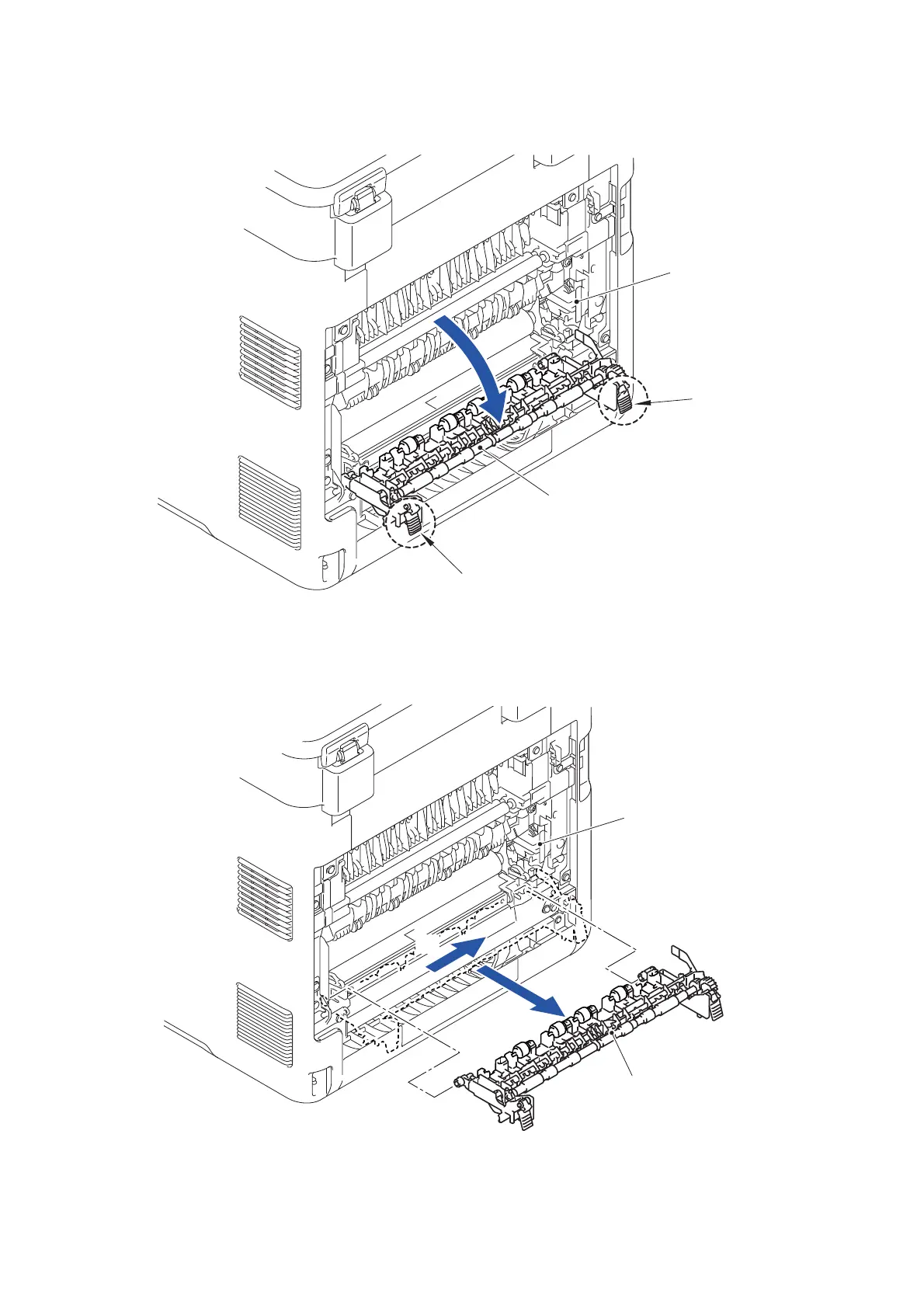

(4) Release the lock of the Fuser cover lock lever L/R to open the Fuser cover ASSY.

Fig. 3-10

(5) Slide the Fuser cover ASSY in the direction of the arrow 5a and remove it to the front.

Fig. 3-11

Fuser cover lock lever R

Fuser cover ASSY

Main body

Fuser cover

lock lever L

Fuser cover ASSY

Main body
