3-113

Confidential

9.35 LCD

(1) Remove the LCD from the Control panel ASSY.

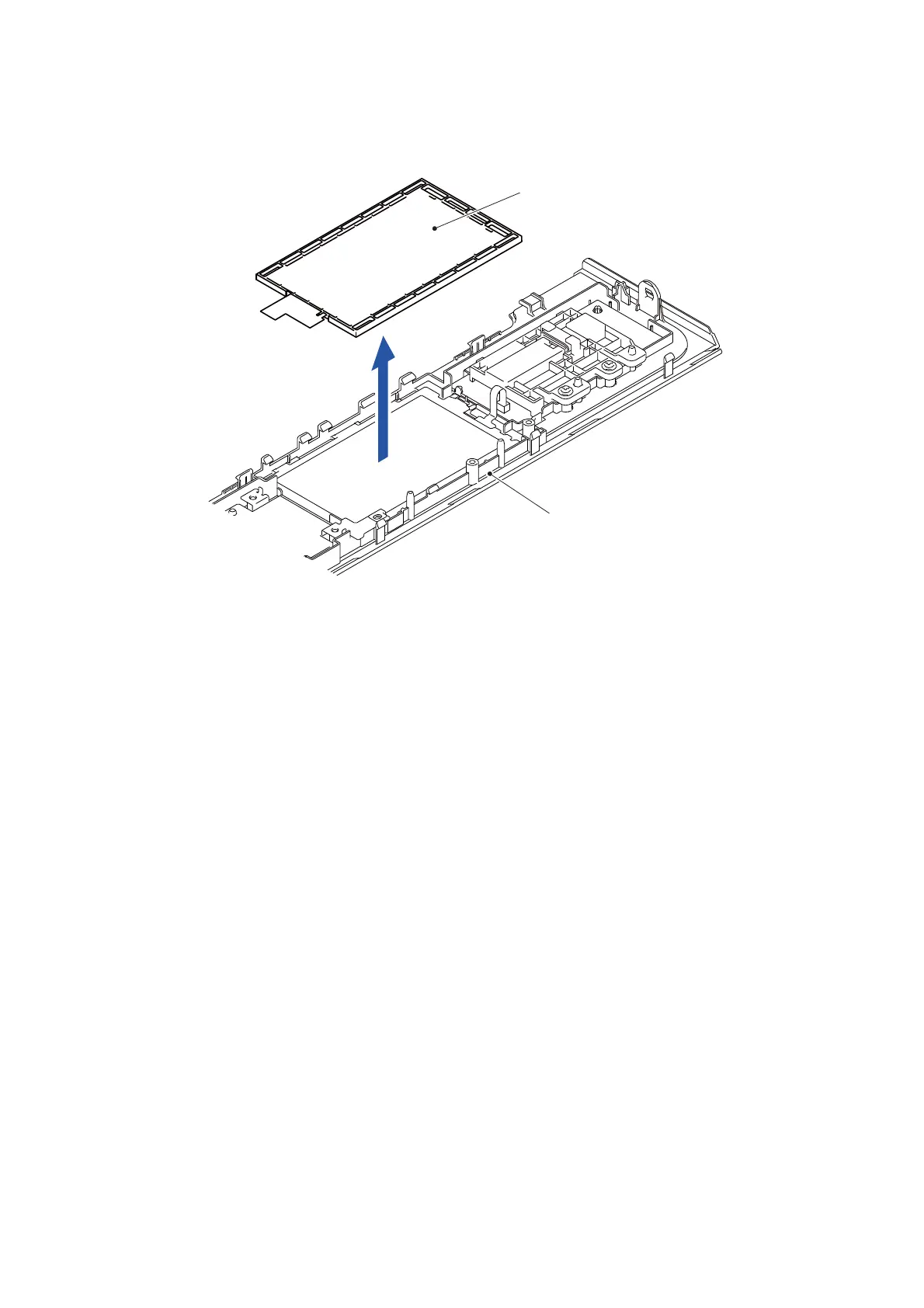

Fig. 3-145

Control panel ASSY

LCD
