3-58

Confidential

9.14 Support Flap

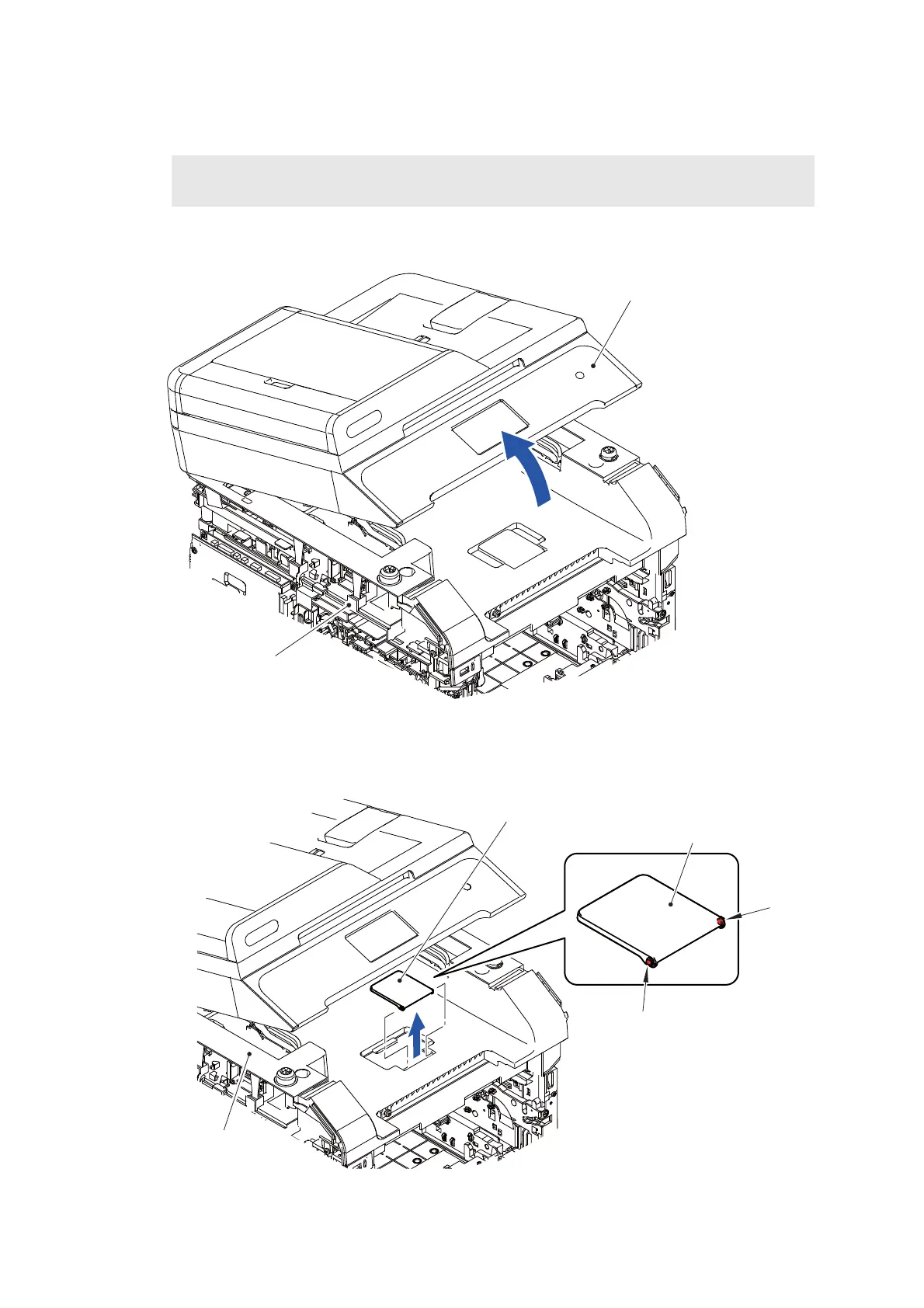

(1) Open the Document scanner unit.

Fig. 3-49

(2) Release the two Pins and remove the Support flap from the Main body.

Fig. 3-50

Memo:

Follow the procedure (2) only in the case of the Legal model.

Main body

Document scanner unit

Support flap

Main body

Default Chapter4
