9.55 Paper Eject ASSY

(1) Disconnect the two Connectors (CN1 and CN2) from the High-voltage power supply PCB

ASSY.

(2) Release the wiring of the High-voltage main harness ASSY.

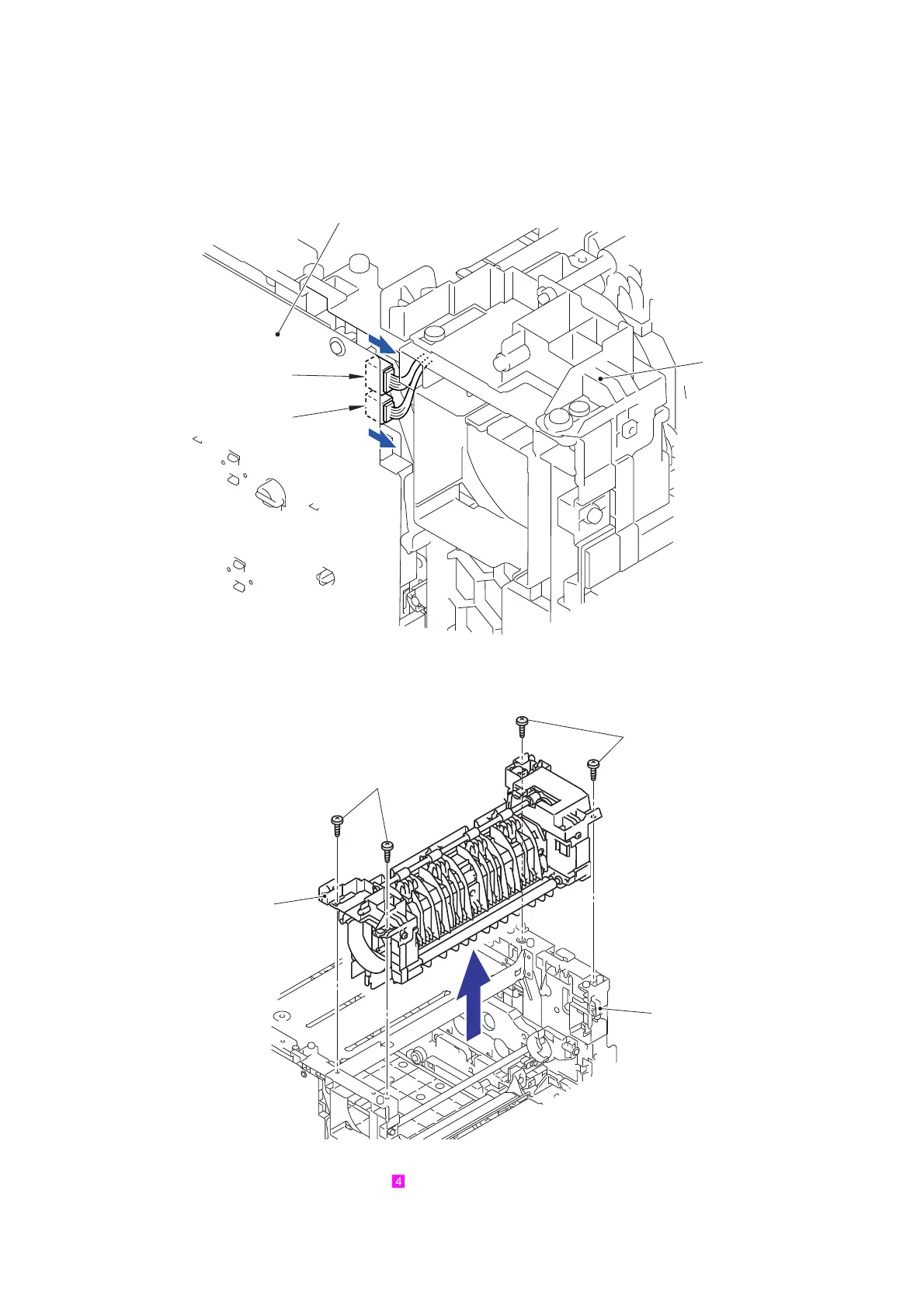

Fig. 3-216

(3) Remove the four Taptite bind B M4x12 screws and remove the Paper eject ASSY from

the Main body.

Fig. 3-217

Harness routing: Refer to “ Paper Eject ASSY”

CN1

CN2

High-voltage power supply PCB ASSY

Paper eject ASSY

Taptite bind B M4x12

Paper eject ASSY

Main body

Taptite bind B M4x12
