3-178

Confidential

9.66 Registration Front/Rear Sensor PCB ASSY

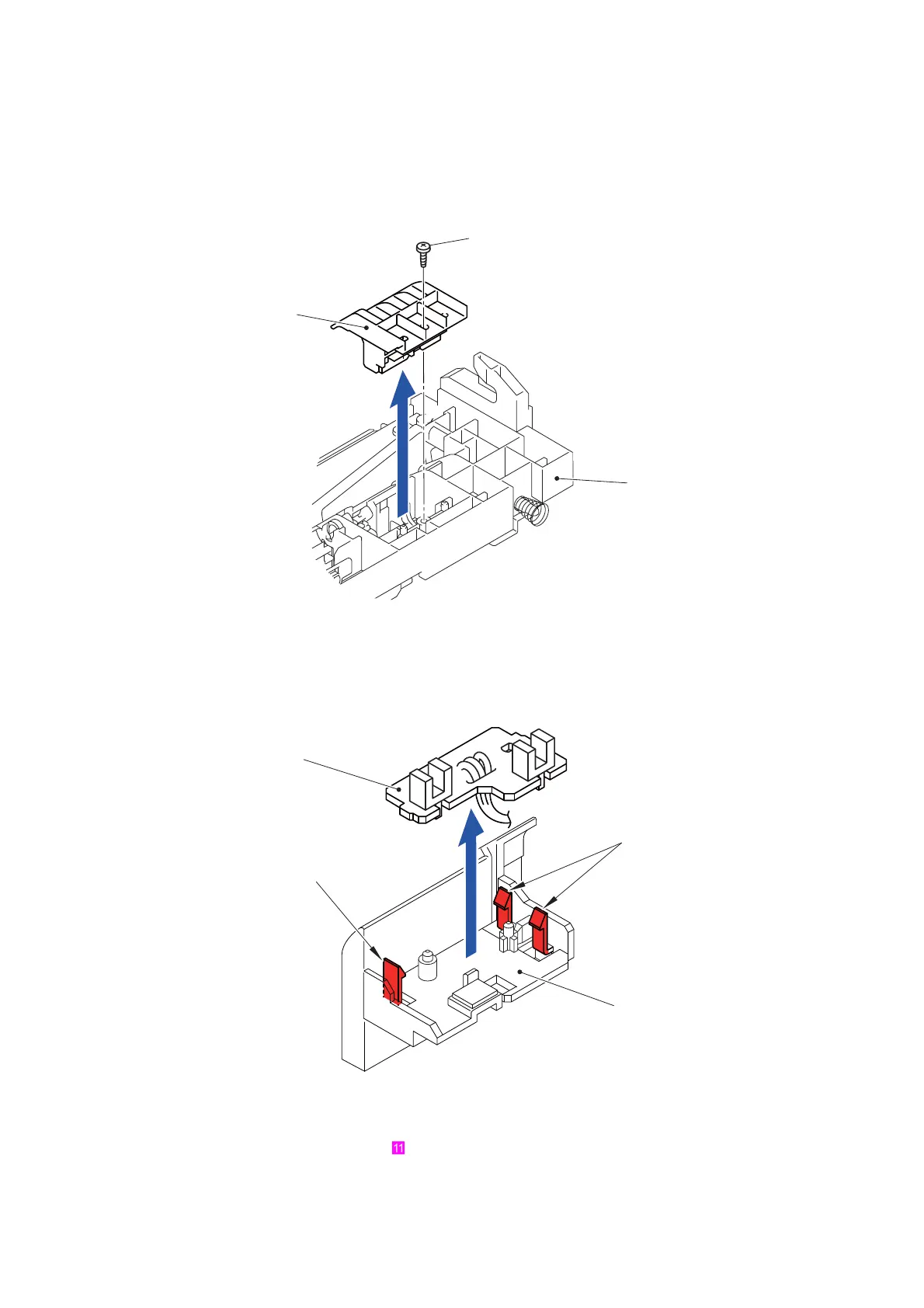

(1) Release the wiring of the Registration front/rear sensor PCB ASSY.

(2) Remove the Taptite bind B M3x10 screw and remove the Registration front/rear sensor

PCB holder from the Paper feed unit.

Fig. 3-257

(3) Release the three Hooks and remove the Registration front/rear sensor PCB ASSY from

the Registration front/rear sensor PCB holder.

Fig. 3-258

Harness routing: Refer to “ Paper Feed Unit”

Taptite bind B M3x10

Registration front/rear

Paper feed unit

sensor PCB holder

Registration front/rear sensor PCB ASSY

Registration front/rear sensor

Hook

PCB holder
