9.47 Laser Unit Flat Cable/Laser Unit

(1) Remove the seven Taptite bind B M4x12 screws from the Joint cover base ASSY.

(2) Remove the two Taptite bind B M4x12 screws from the back of the Joint cover base ASSY.

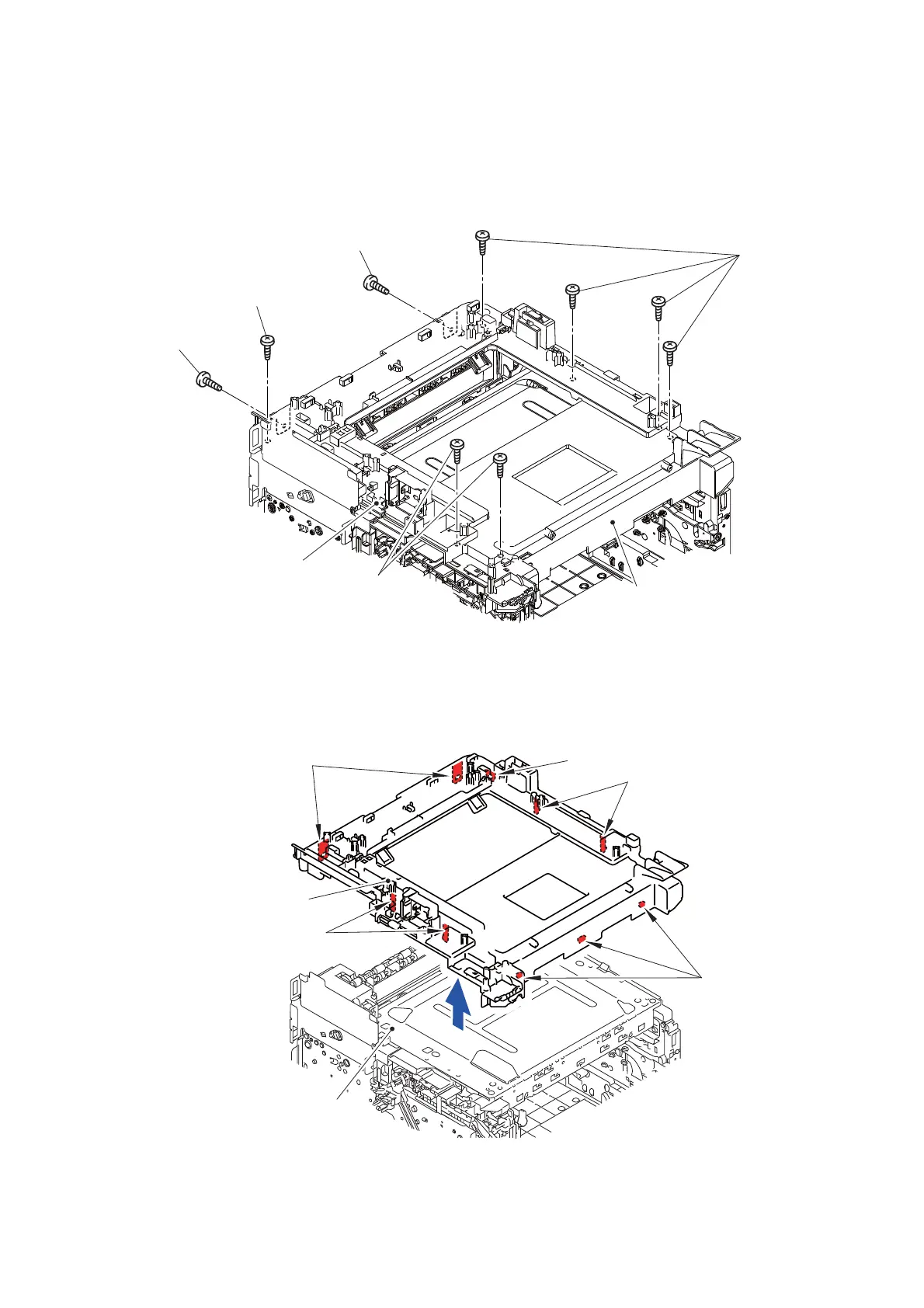

Fig. 3-189

(3) Release the three Hooks 1. Release the other seven Hooks and remove the Joint cover

base ASSY from the Main body.

Fig. 3-190

Taptite bind

Taptite bind B M4x12

Taptite bind

B M4x12

Taptite bind B M4x12

Joint cover base ASSY

Main body

Main body

Hook 1

Hook

Joint cover base ASSY
