3-140

Confidential

(4) Remove the six Taptite bind B M4x12 screws and four Taptite cup S M3x6 SR screws,

and remove the Scanner cover plate from the Main body.

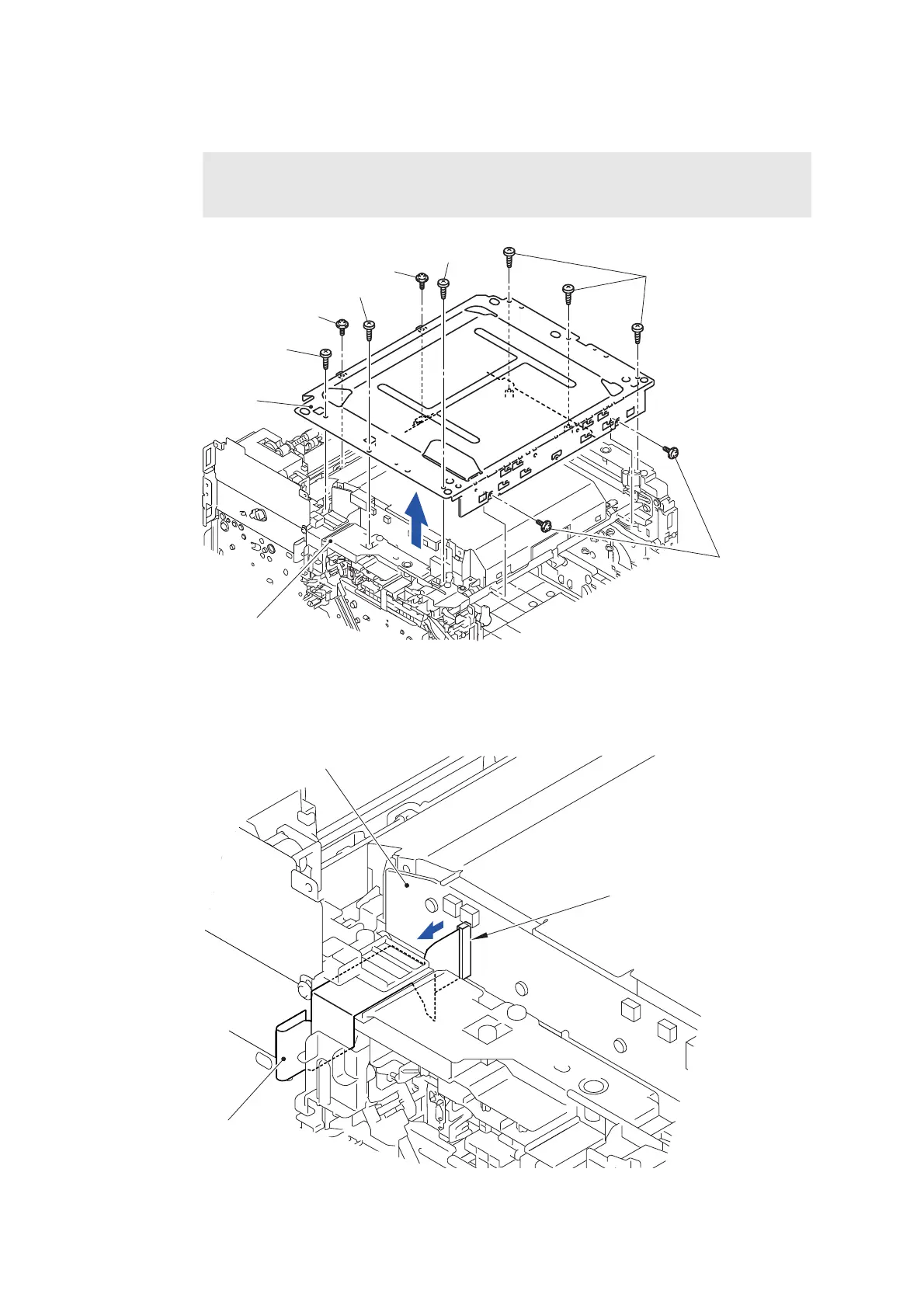

Fig. 3-191

(5) Disconnect the Laser unit flat cable from the Laser unit and release the wiring.

Fig. 3-192

Assembling Note:

When assembling the six screws of the Taptite bind B M4x12, be sure to assemble

them in the order shown in the figure.

Taptite bind B M4x12

Taptite cup S M3x6 SR

Taptite cup

S M3x6 SR

Main body

Scanner cover plate

Taptite bind B M4x12

Laser unit flat cable

Laser unit

CN1
