3-77

Confidential

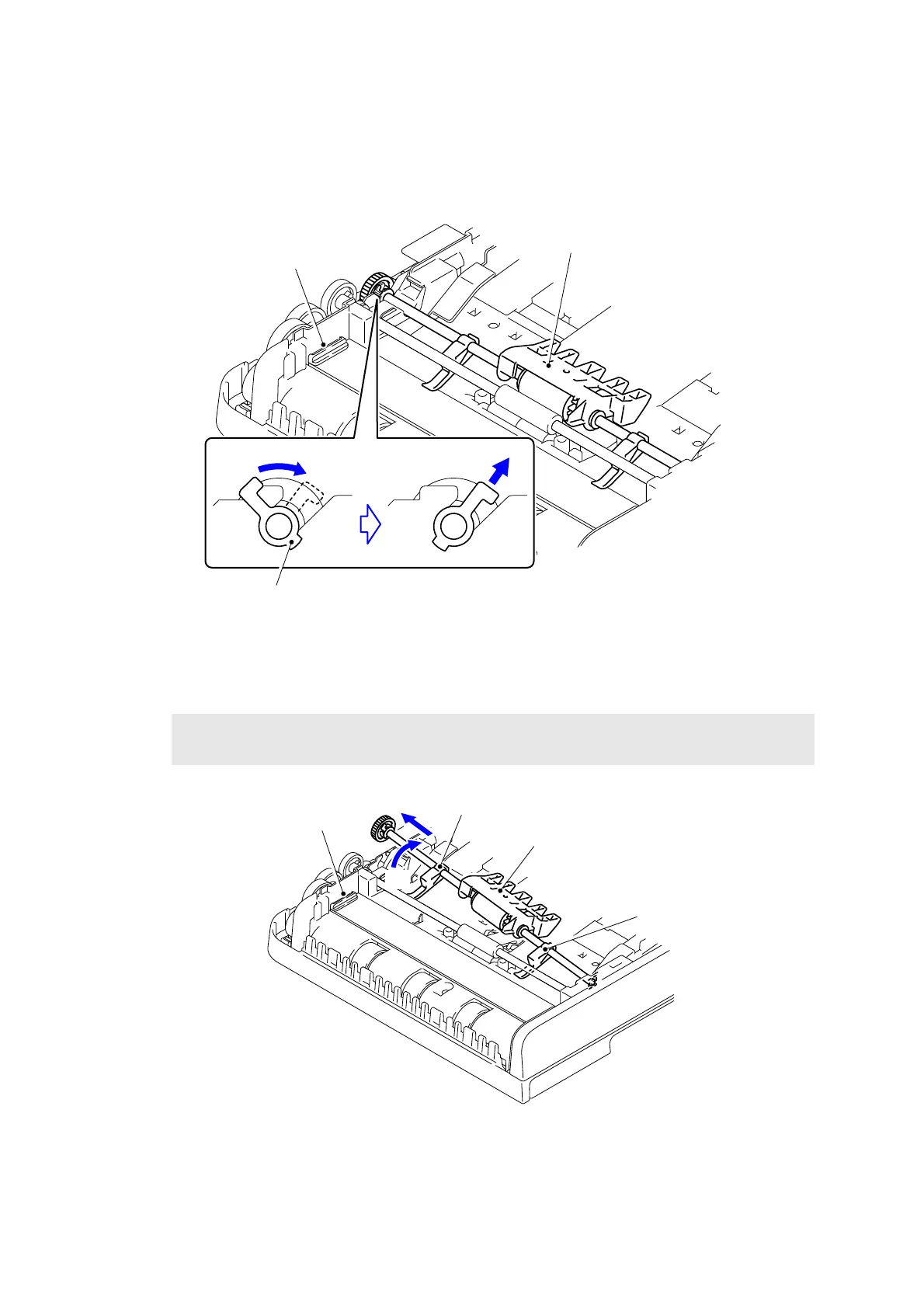

9.22 Separation Roller

(1) Rotate the Conductive bushing to release the lock.

Fig. 3-82

(2) Remove the Separation roller from the ADF unit.

Fig. 3-83

Note:

When removing the Separation roller, be careful not to damage the Flap ADF.

Conductive bushing

ADF unit

Separation roller

ADF unit

Flap ADF
