9.49 Process Drive Unit/Fuser Drive Gear Z25

(1) Release all the wiring from the Wireless LAN cable rack.

(2) Release the three Hooks and remove the Wireless LAN cable rack from the Main body.

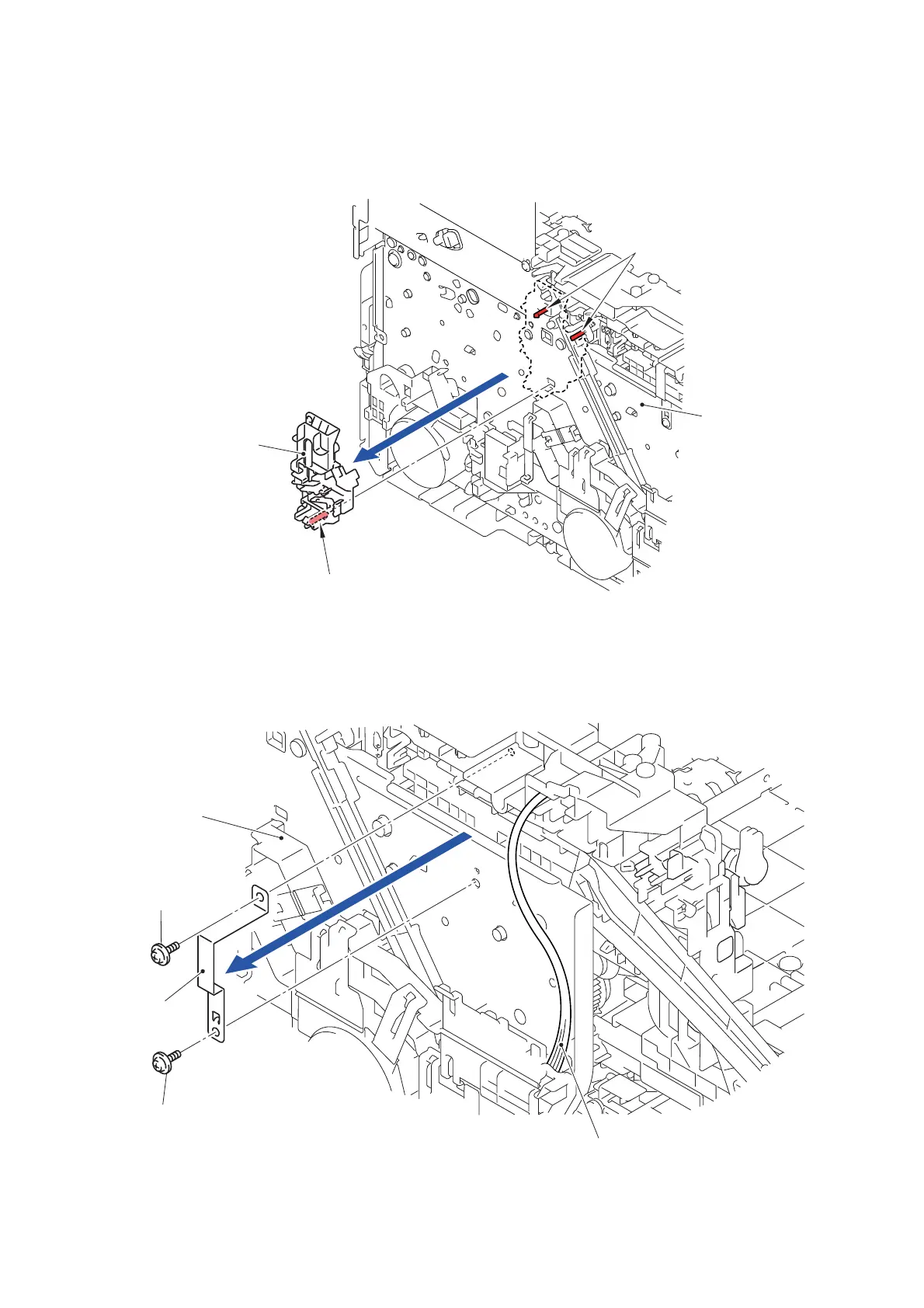

Fig. 3-198

(3) Release the wiring of the Polygon motor harness.

(4) Remove the two Taptite cup S M3x8 SR screws and remove the Side ground plate L from

the Main body.

Fig. 3-199

Wireless LAN cable rack

Hook

Main body

Hook

Taptite cup S M3x8 SR

Main body

Taptite cup S

M3x8 SR

Polygon motor harness

Side ground

plate L
