3-73

Confidential

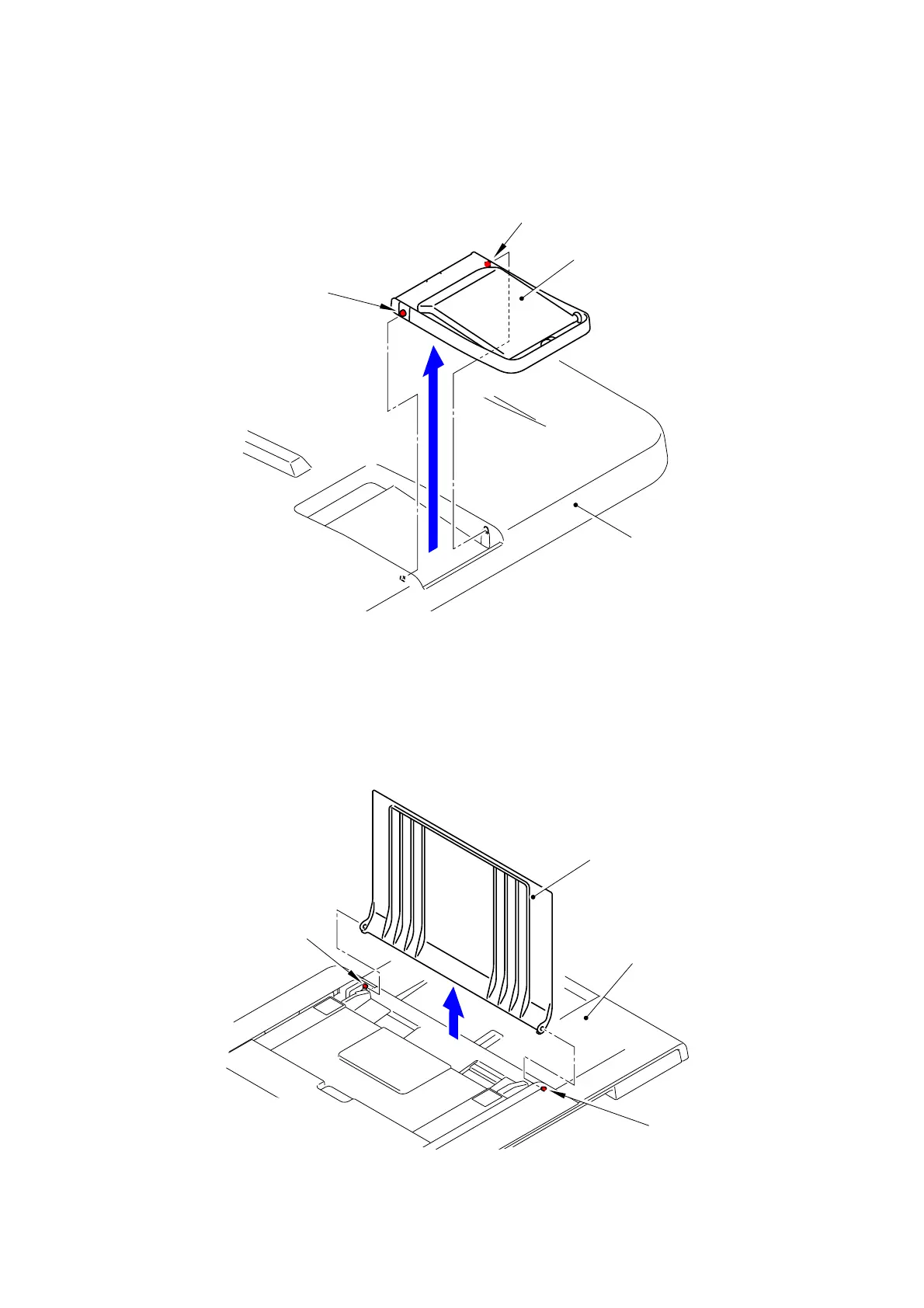

9.18 ADF Document Output Support Flap

(1) Turn the ADF unit right side up.

(2) Release the two Pins and remove the ADF document output support flap from the ADF unit.

Fig. 3-75

9.19 ADF Document Support

(1) Open the ADF document support.

(2) Release the two Pins and remove the ADF document support from the ADF unit.

Fig. 3-76

ADF document output support flap

ADF unit

ADF document support

ADF unit
