3-191

Confidential

10.5 T2 Relay PCB ASSY

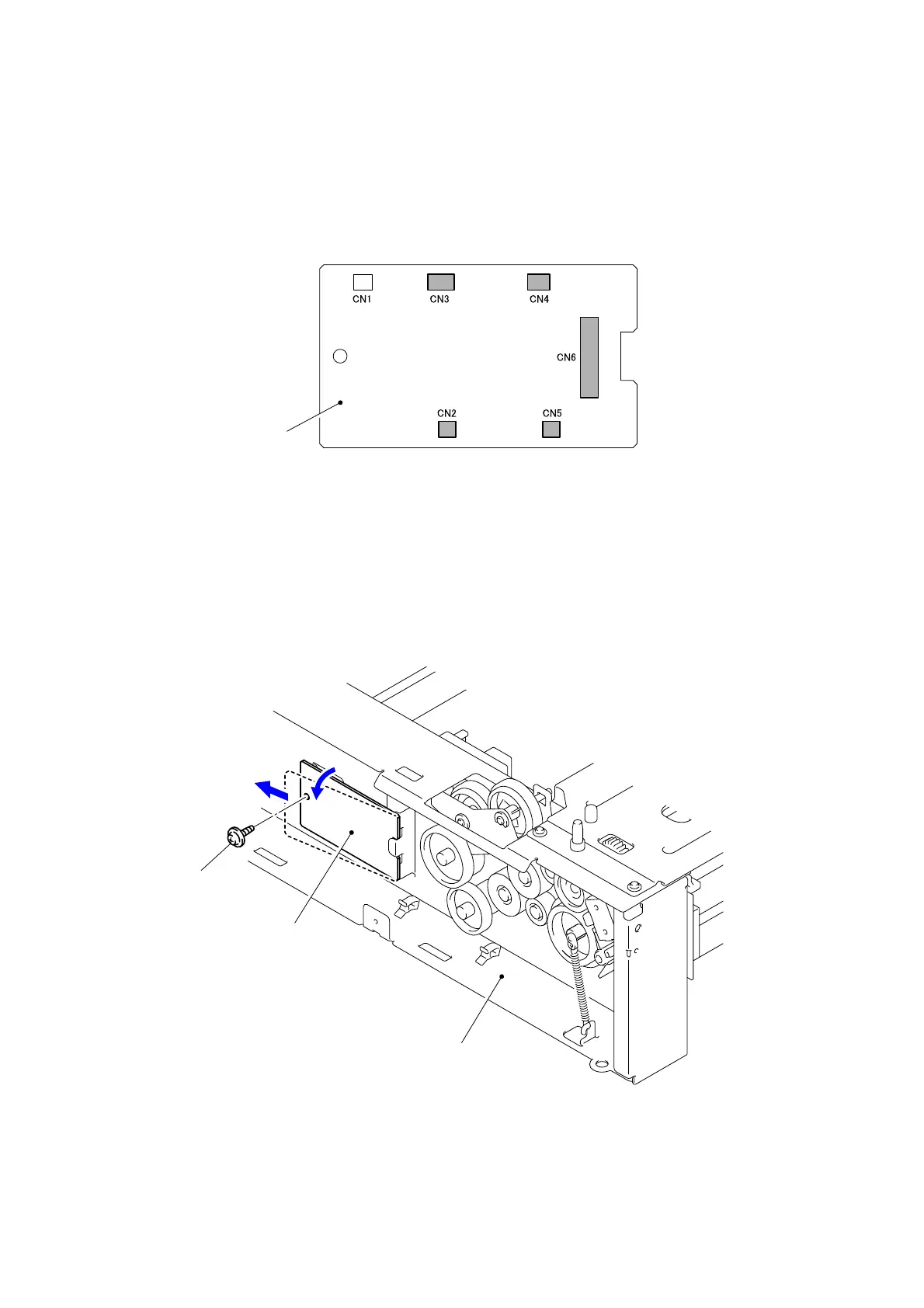

(1) Disconnect all the Connectors from the T2 relay PCB ASSY.

Fig. 3-279

(2) Remove the Taptite cup S M3x6 SR screw and remove the T2 relay PCB ASSY from the

T2 frame L unit.

Fig. 3-280

(Not used) (T2 paper edge sensor) (T2 plate-up detection sensor)

(T2 connector)

(T2 plate-up motor)(T2 solenoid)

T2 relay PCB ASSY

Taptite cup S M3x6 SR

T2 frame L unit

Default Chapter4
