3-104

Confidential

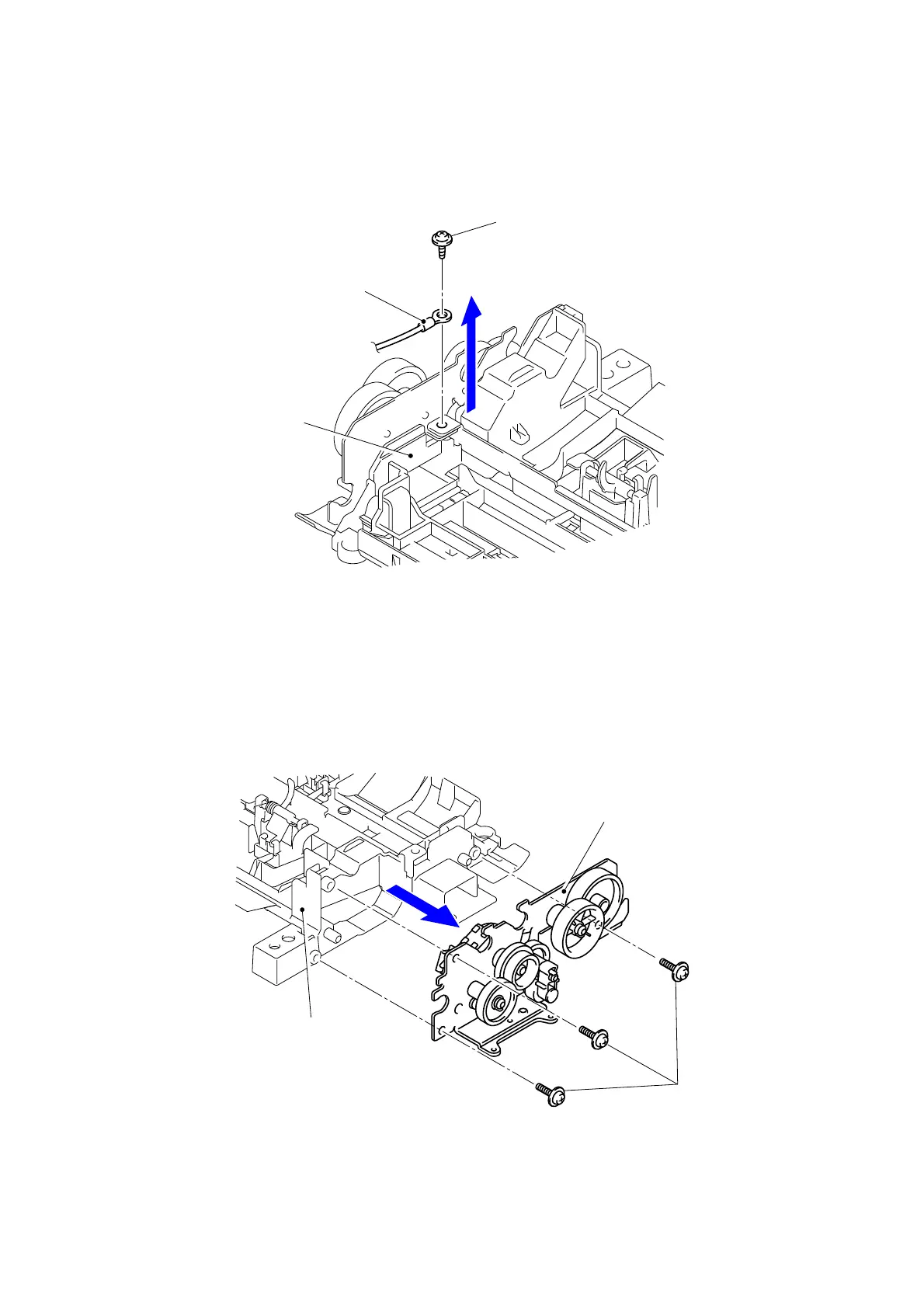

9.31 ADF Motor

(1) Remove the Taptite cup S M3x8 SR screw and remove the ADF FG harness.

Fig. 3-128

(2) Remove the three Taptite cup B M3x10 screws and remove the Drive frame ASSY from

the Lower ADF chute.

Fig. 3-129

Taptite cup S M3x8 SR

ADF FG harness

Lower ADF chute

Taptite cup B M3x10

Drive frame ASSY

Lower ADF chute
