3-75

Confidential

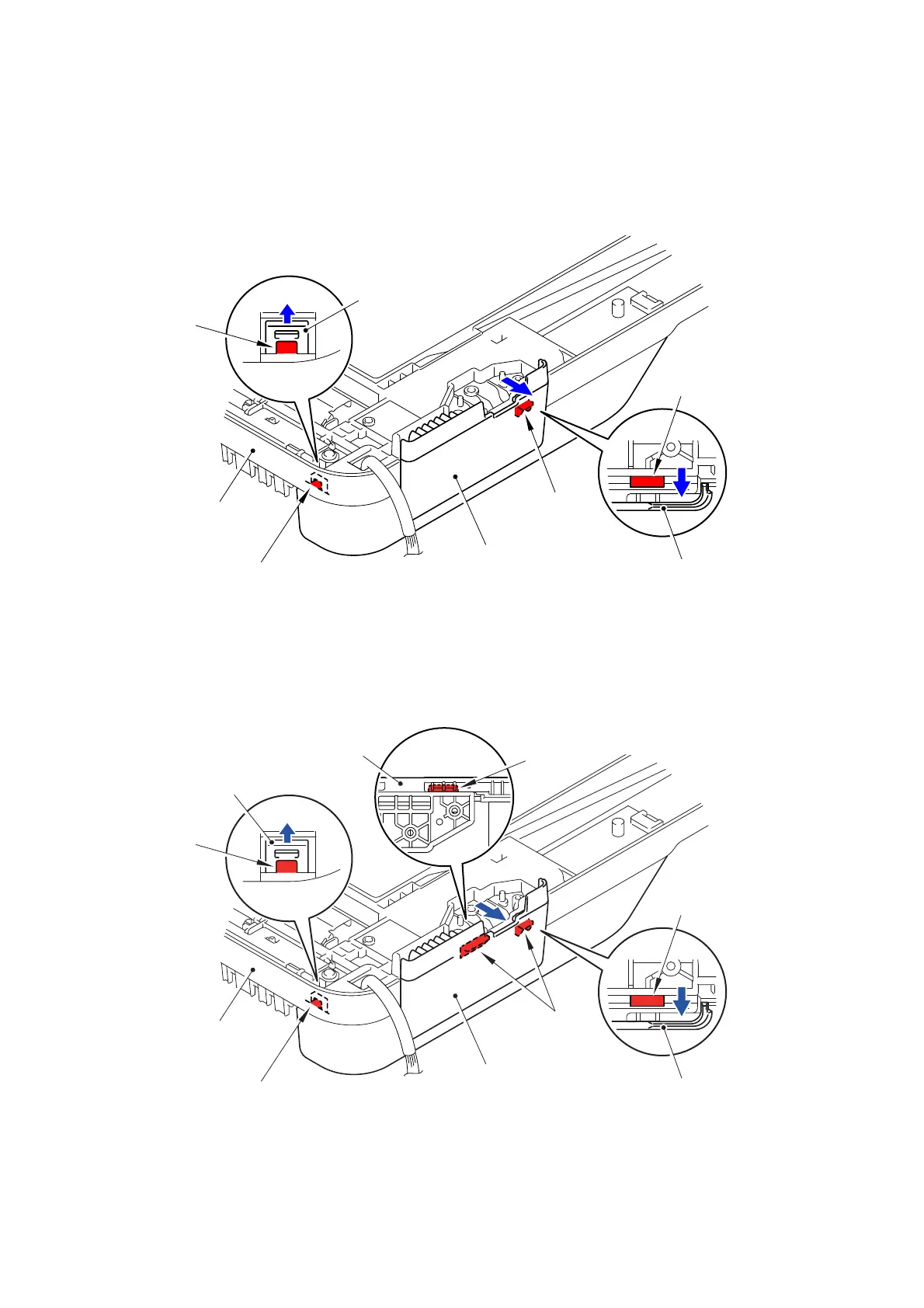

9.21 Gear Cover

■

A4 model

(1) Release the two Hooks of the ADF unit.

Fig. 3-78

■ Legal model

(1) Release the three Hooks of the ADF unit.

Fig. 3-79

Hook

Hook

Hook

Hook

ADF unit

ADF unit

Gear cover

Gear cover

Hook

Hook

Hook

Hook

ADF unit

Gear cover

Gear cover

Hook

Gear cover

Gear cover
