3-188

Confidential

10.2 T2 Cover Rear

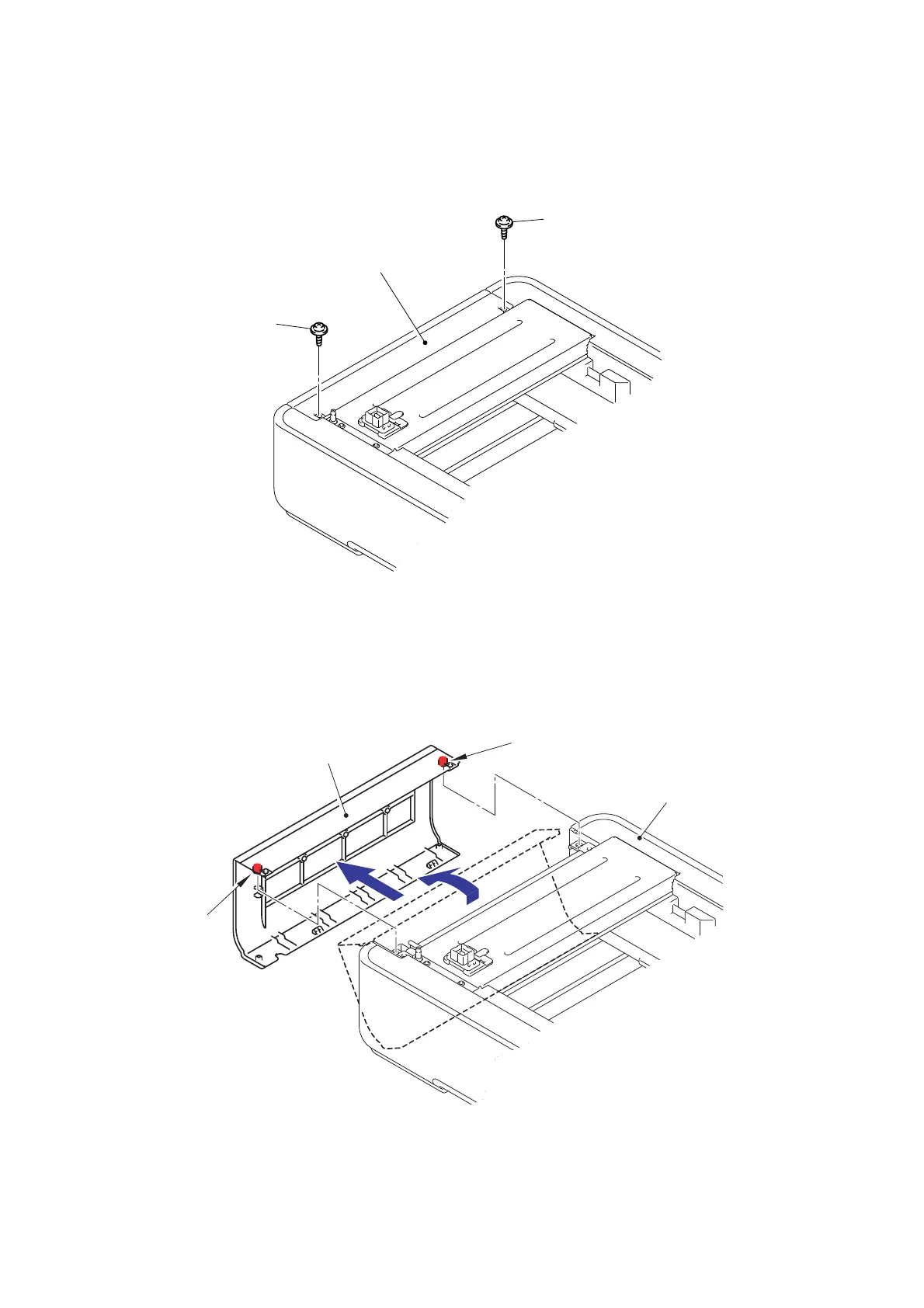

(1) Remove the two Taptite cup S M3x10 SR screws from the T2 cover rear.

Fig. 3-273

(2) Release the two Pins and remove the T2 cover rear from the Main body.

Fig. 3-274

T2 cover rear

Taptite cup S M3x10 SR

Taptite cup S M3x10 SR

<Back side>

Pin

Pin

T2 cover rear

2a

2b

Main body

<Back side>
