9.5 Fuser Unit

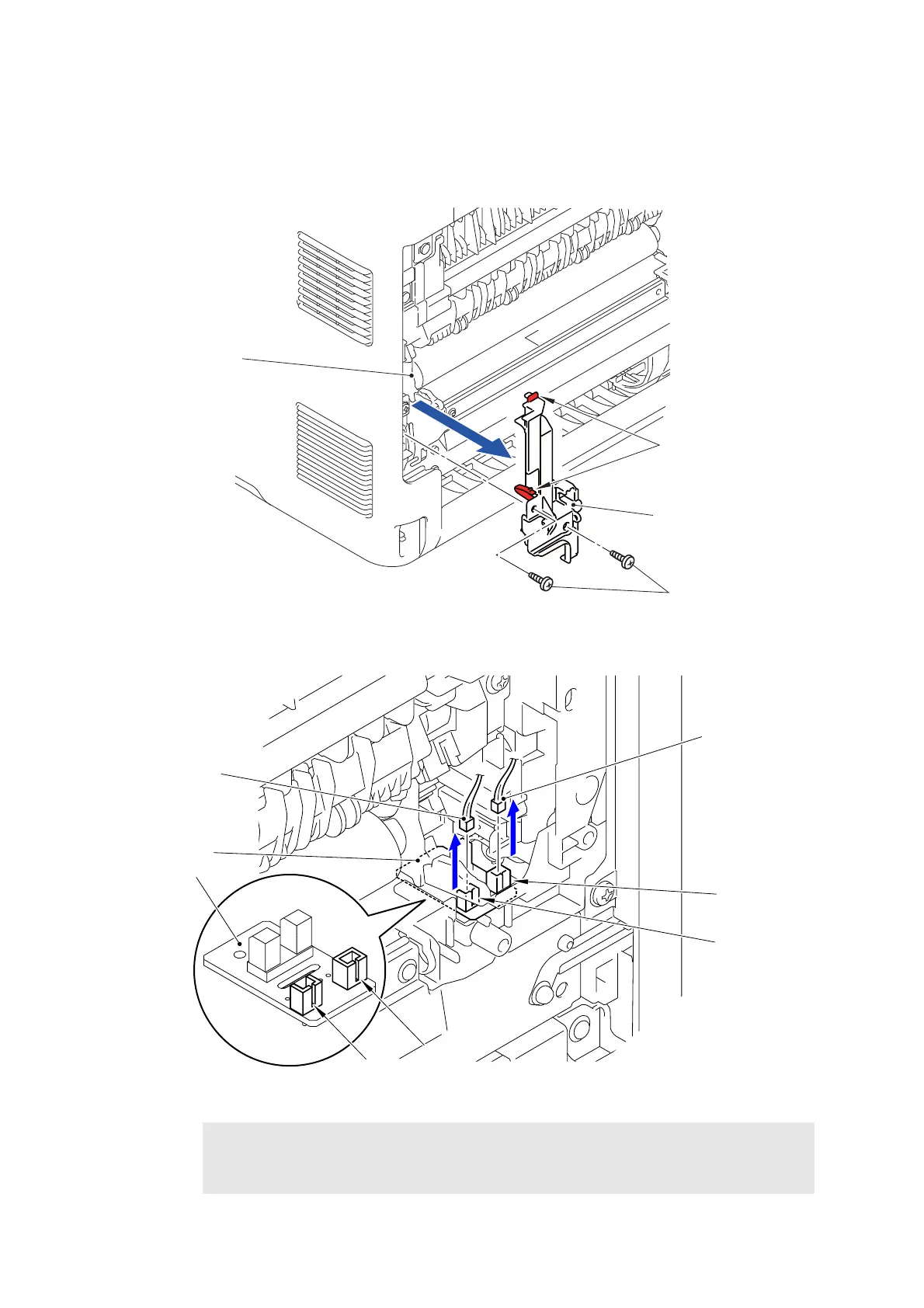

(1) Remove the two Taptite bind B M4x12 screws from the Fuser cover R.

(2) Release the two Hooks and remove the Fuser cover R from the Main body.

Fig. 3-15

(3) Disconnect the two Connectors (CN1 and CN2) from the Eject sensor PCB ASSY.

Fig. 3-16

Assembling Note:

* Center thermistor has a black and blue connectors (230V models only).

The black connector may be connected to the blue insertion port and vice versa.

Taptite bind B M4x12

Fuser cover R

Hook

Main body

Connector

CN1

CN2

Connector

CN1

CN2

Eject sensor

PCB ASSY

(Center thermistor

harness

)
