3-38

Confidential

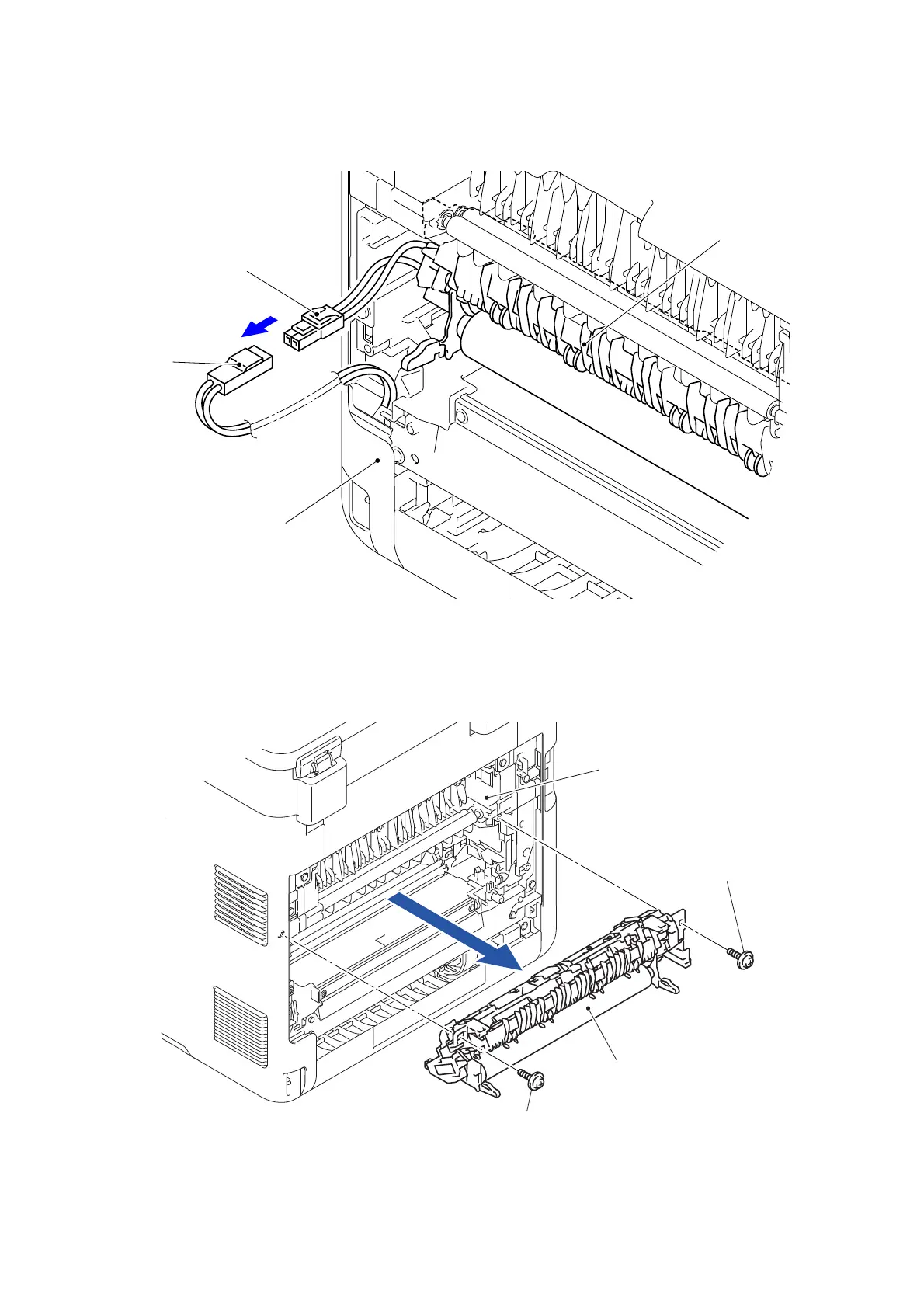

(4) Disconnect the Electrode terminal of the Main body from the Electrode terminal of the

Fuser unit.

Fig. 3-17

(5) Remove the two Taptite pan B M4x14 screws to remove the Fuser unit from the Main body.

Fig. 3-18

Fuser unit

Electrode terminal of the

Main body

Electrode

terminal

Main body

of the

Fuser unit

Taptite pan B M4x14

Fuser unit

Main body

Taptite pan B M4x14
