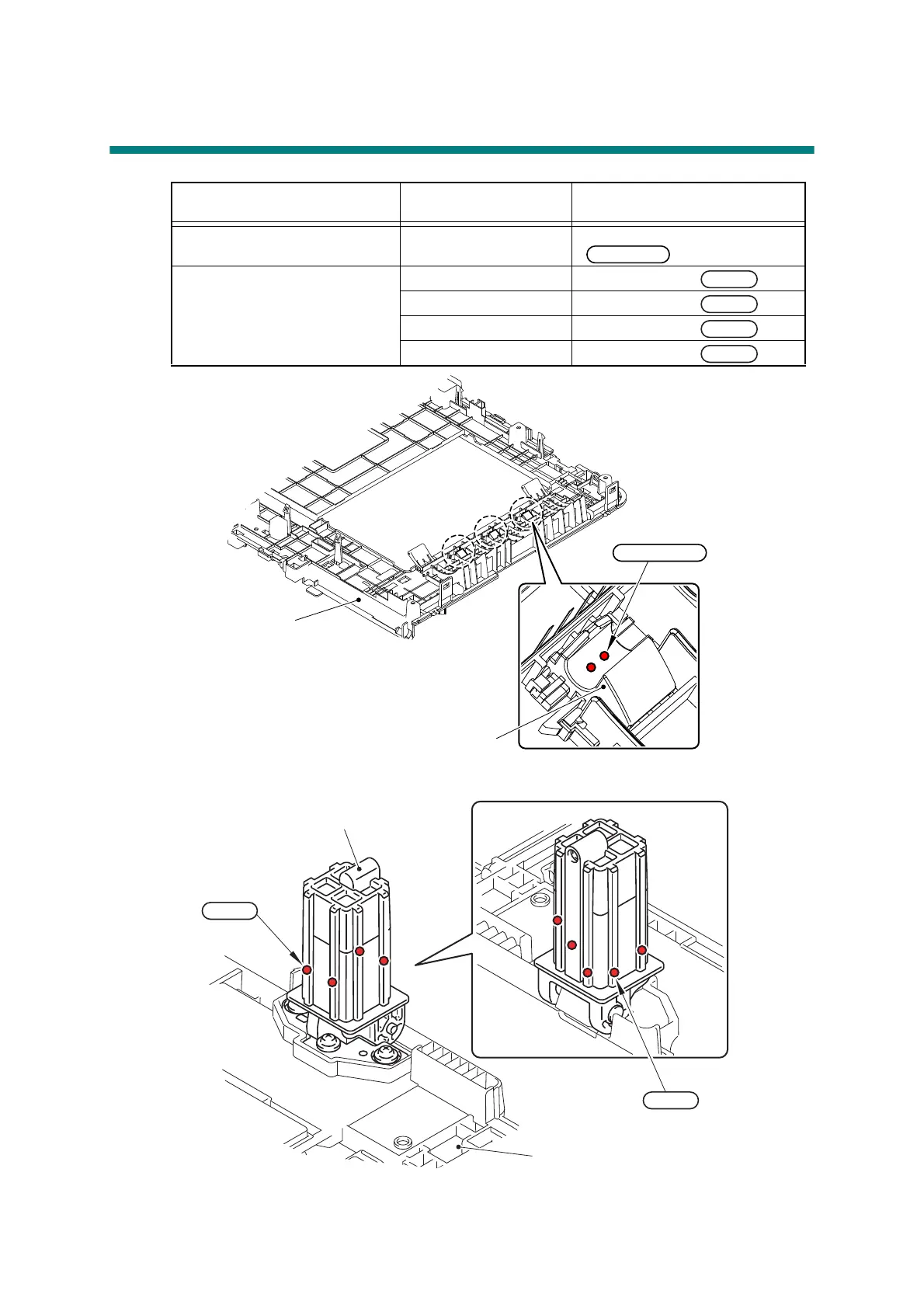

5. LUBRICATION

PG1.0 to 1.5: PG661 (W) (1.0 to 1.5 mm dia. ball)

BDX2.0: BDX-313 (A) (2.0 mm dia. ball)

The kind of the lubricating oil

(Maker name)

Lubrication point Quantity of lubrication

PG661 (W) (TORAY) Joint cover base

ASSY

1.0 to 1.5 mm dia. ball

BDX-313 (A) (Kanto Kasei) Hinge ASSY L 2.0 mm dia. ball

Hinge R (thin rib) 2.0 mm dia. ball

Hinge R (thick rib) 3.0 mm dia. ball

Back cover 2.0 mm dia. ball

PG1.0 to 1.5

BDX2.0

BDX3.0

BDX2.0

PG1.0WR1.5

Joint cover base ASSY

BDX2.0

Hinge ASSY L

ADF unit
